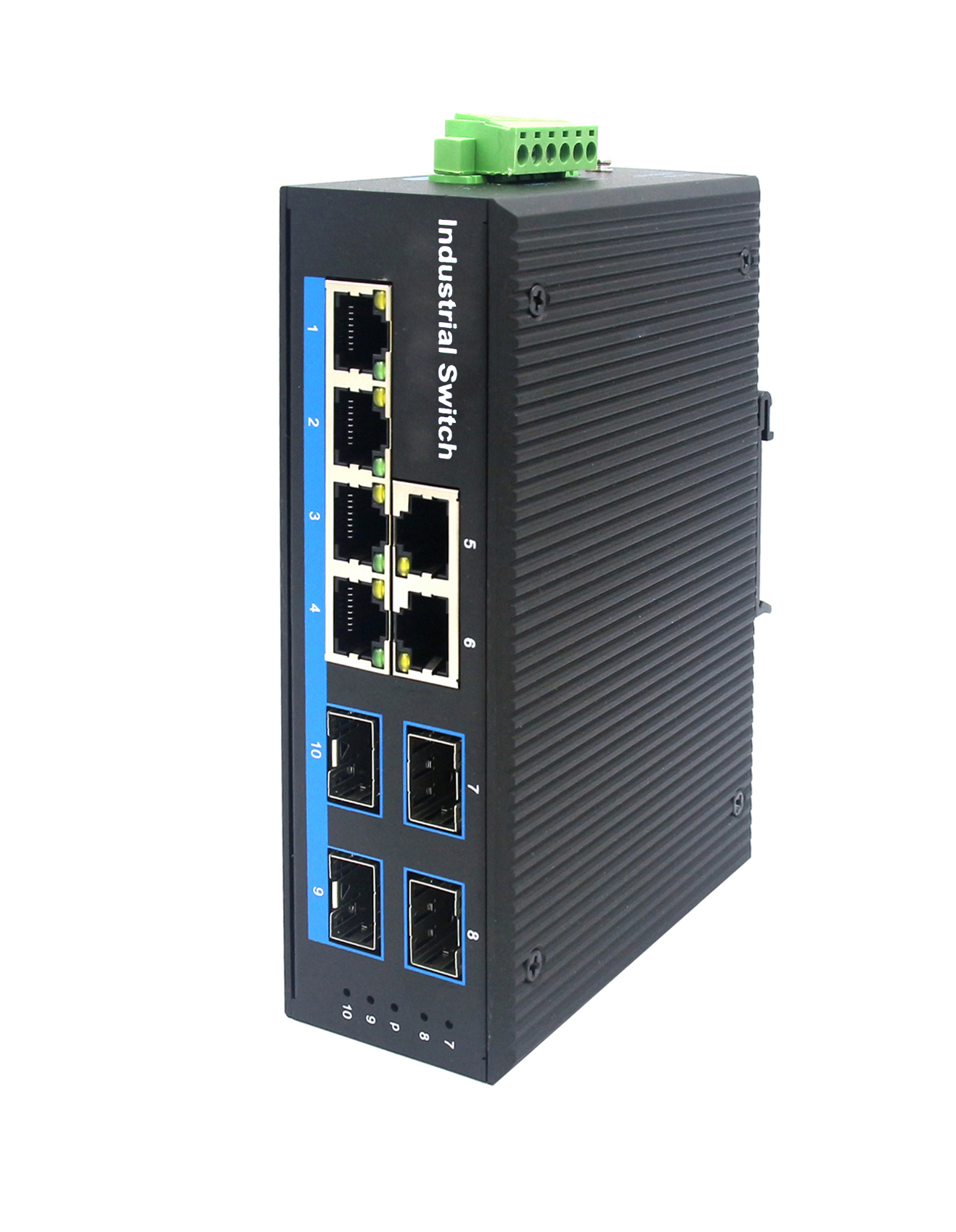

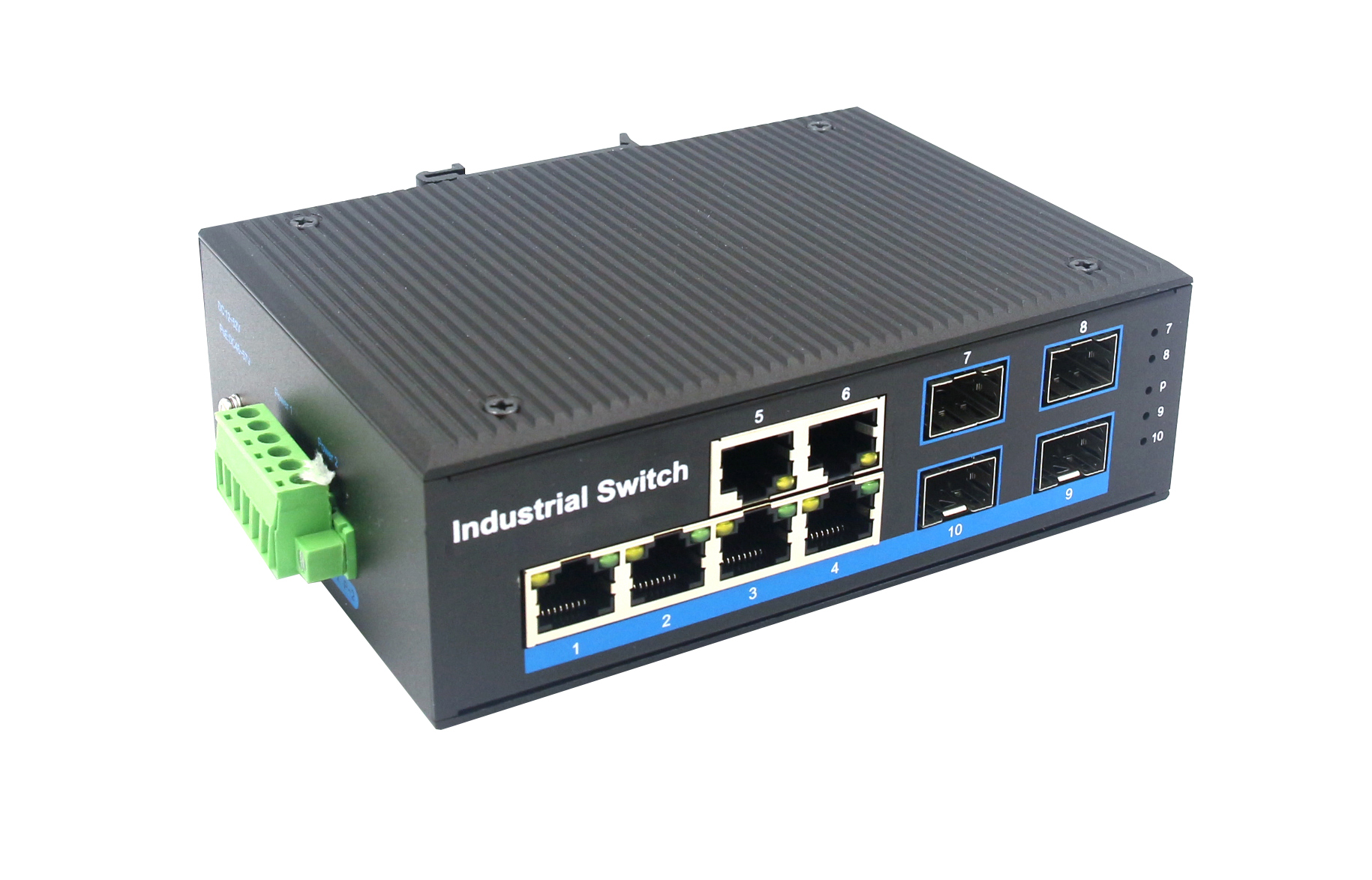

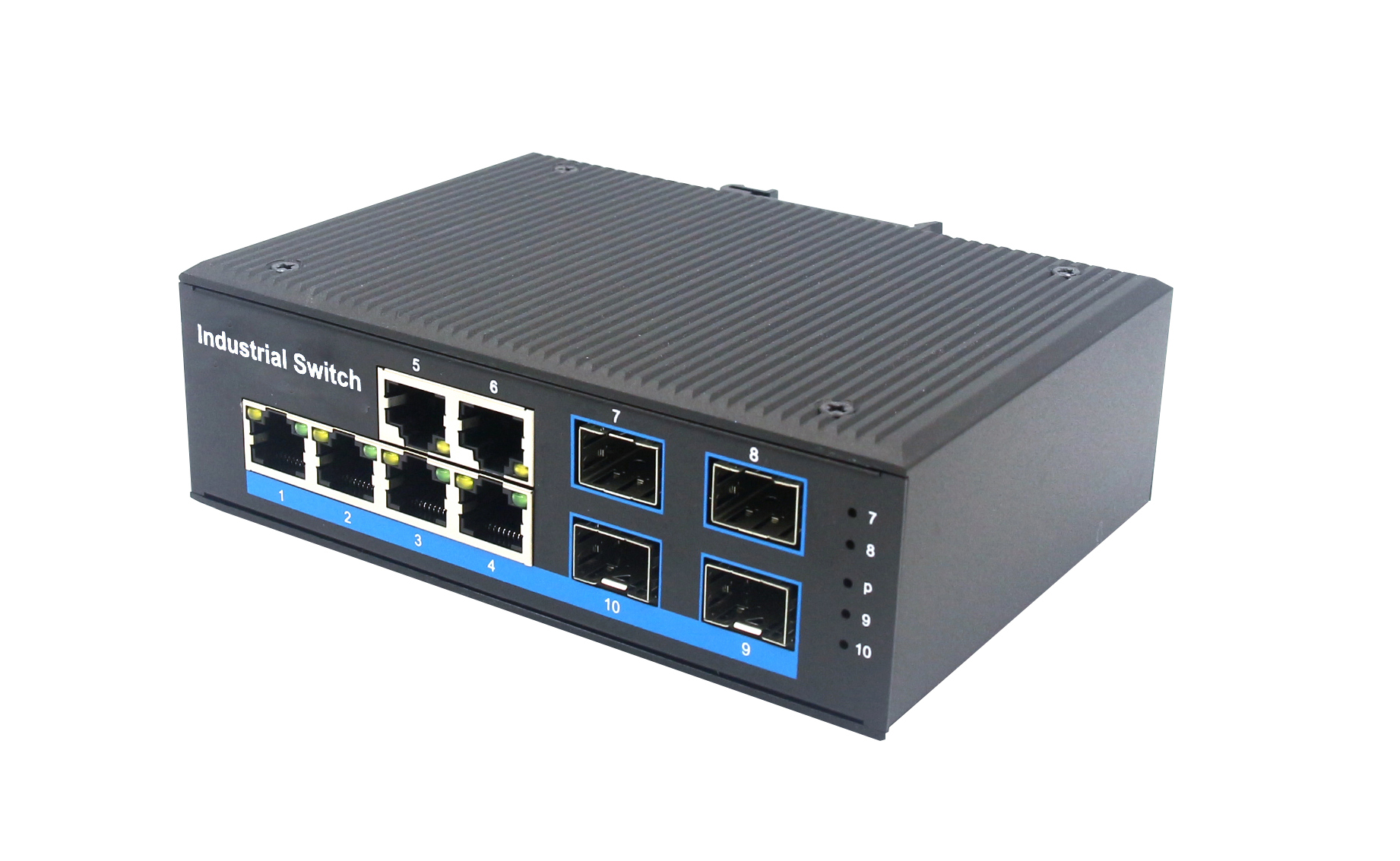

LBTD46G-SC2 LBTD46G-SC20 LBTD46G-SFP

6-port 10/100/1000BASE-TX+4-port 1000Base-FX Industrial Ethernet SwitchSlim Type with more Practicability and ConvenienceLBTD46G an hardened 6-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 6-port 10/100/1000BASE-

6-port 10/100/1000BASE-TX+4-port 1000Base-FX Industrial Ethernet Switch


Slim Type with more Practicability and Convenience

LBTD46G an hardened 6-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 6-port 10/100/1000BASE-TX RJ45 +4-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The LBTD46G series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The LBTD46G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


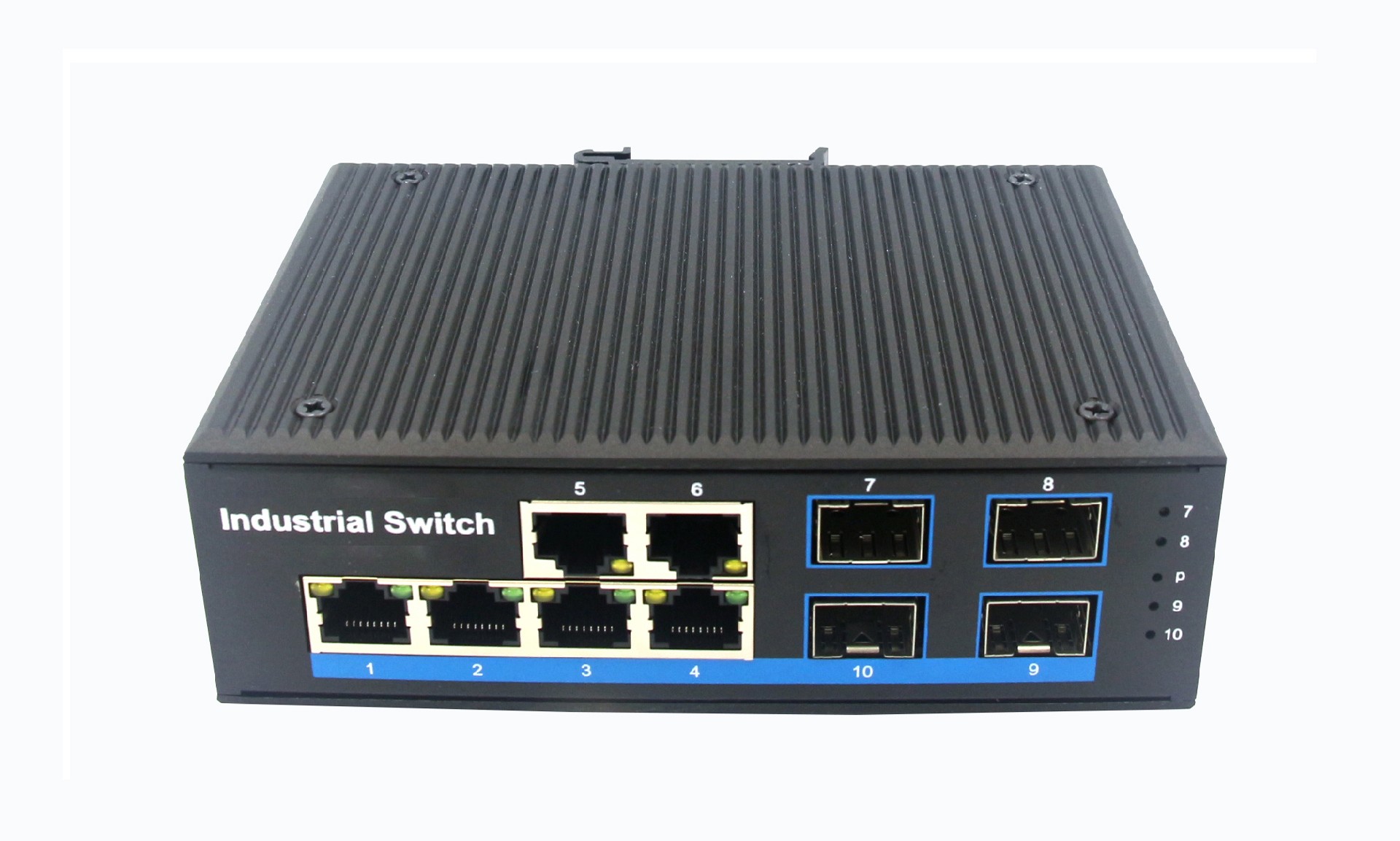

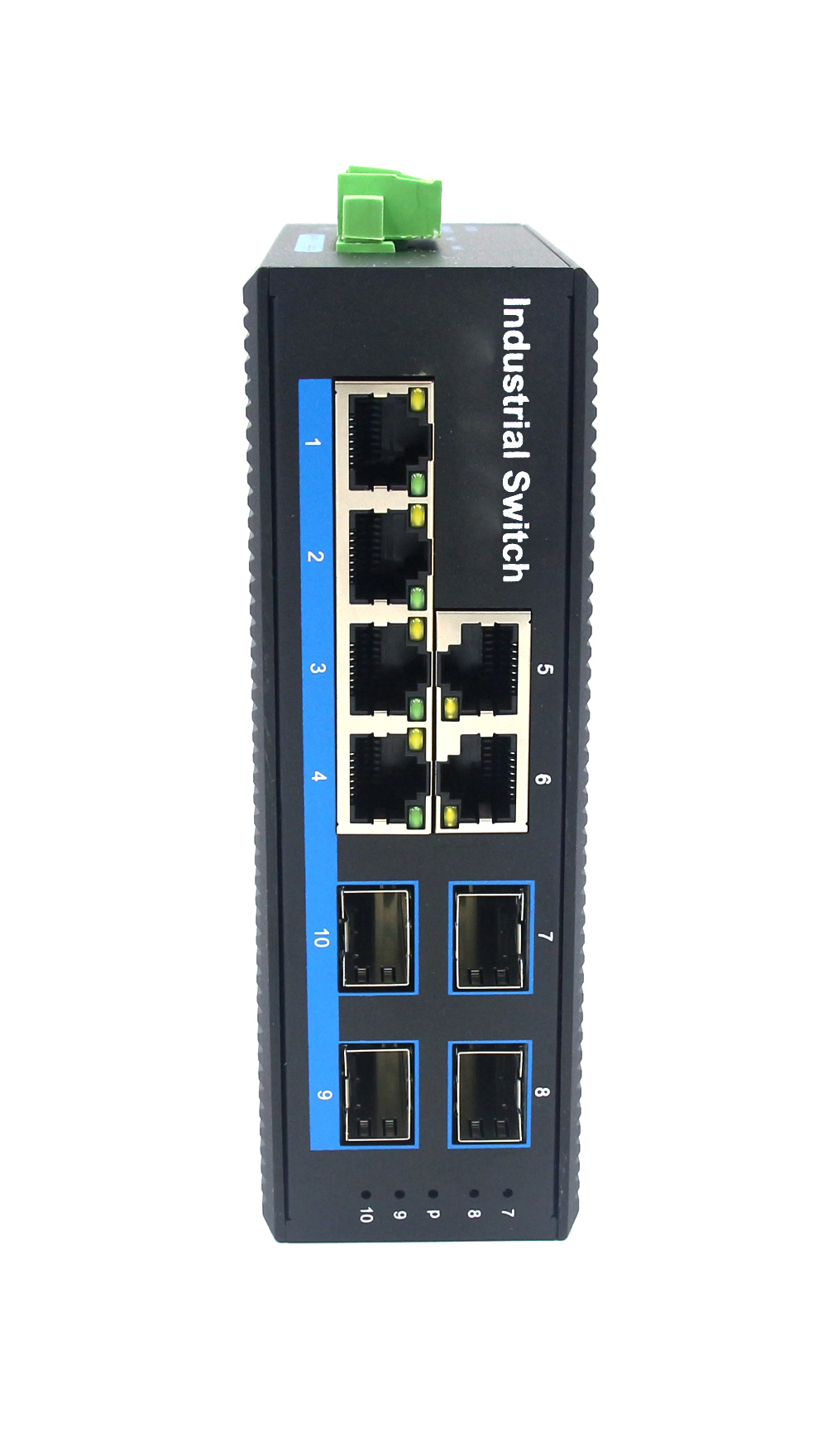

Interface

•6-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

•4-port 1000Base-Fx interface SC/FC/ST/SFP

•Multi-Mode up to 2km

•Single-Mode up to 20km/40km/60km/80km


 Industrial conformance

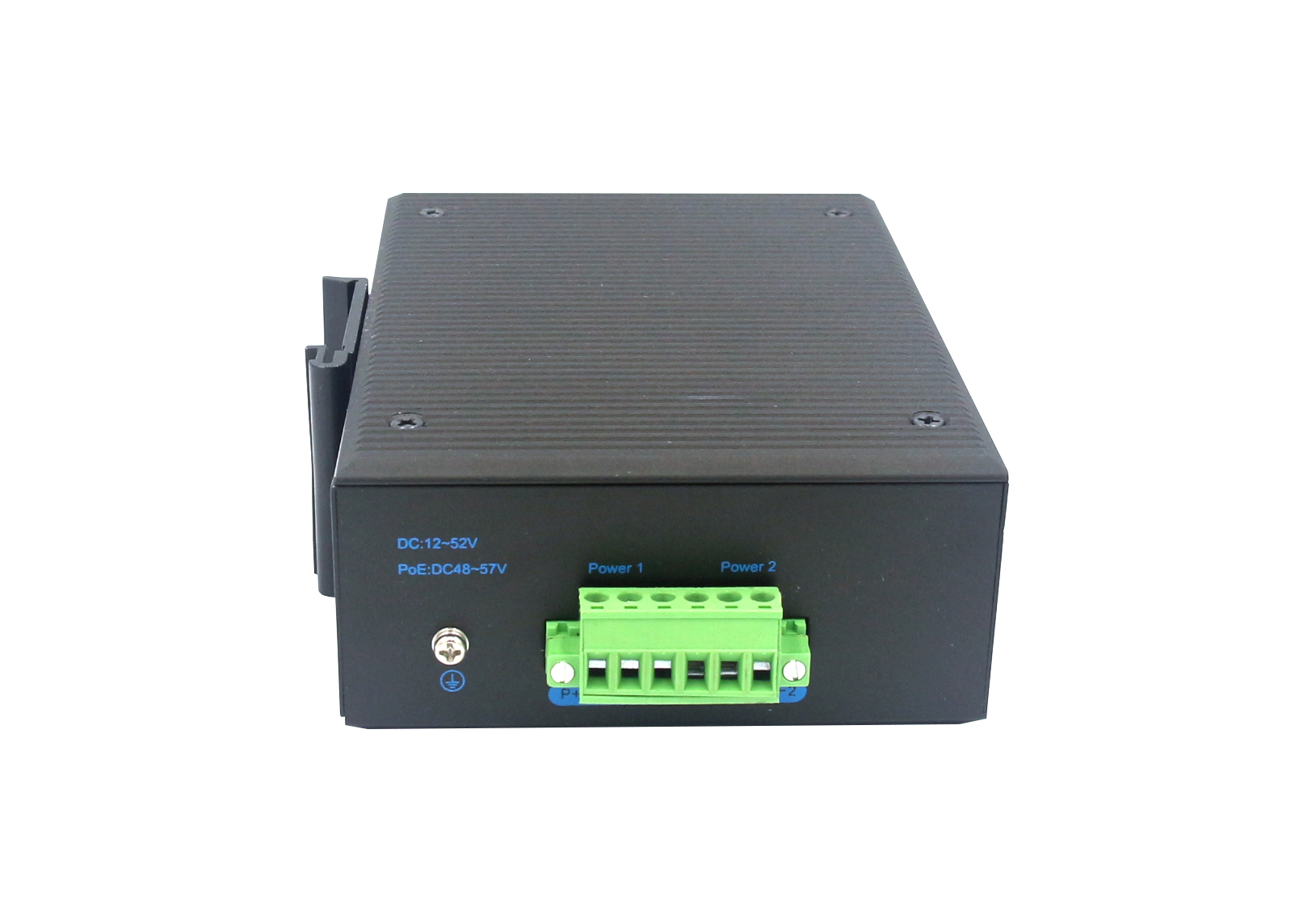

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

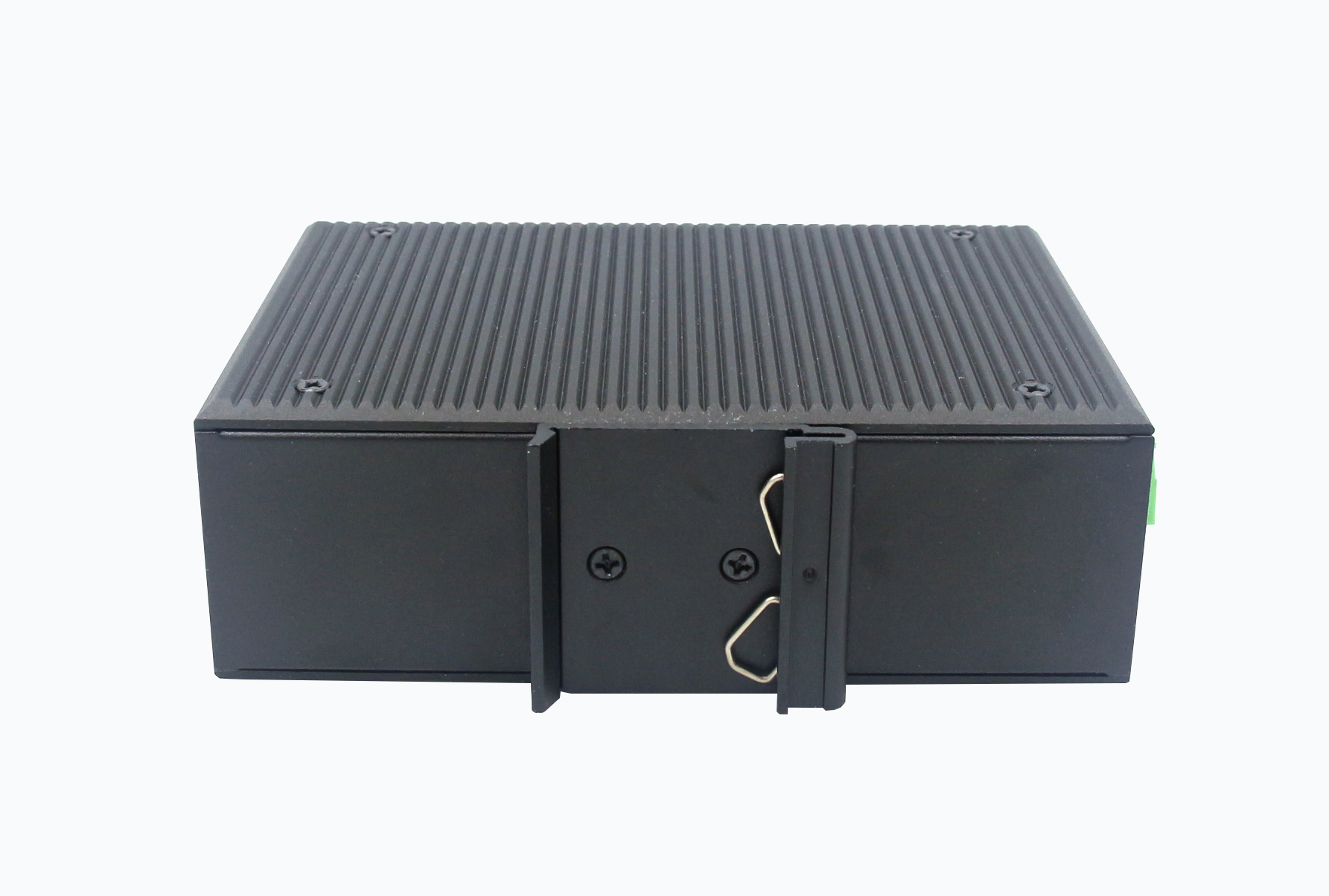

•DIN-rail and wall-mountable hardware design


Specifications:

Model No.LBTD46G-SC2 / LBTD46G-SC20 / LBTD46G-SFP
10/100/1000Base-TX Port6 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

LBTD46G-SC2: 4 SC interface

LBTD46G-SC20: 4 SC Interface

LBTD46G-SFP: 4 SFP Slot


Fiber Port Type

LBTD46G-SC2: SC / multi-mode ,up to distance 2km ;

LBTD46G-SC20: SC / single-mode ,up to distance 20km ;

LBTD46G-SFP: Vary on module




Optical Frequency

LBTD46G-SC2: 1310nm

LBTD46G-SC20: 1310nm

LBTD46G-SFP: Vary on module


Performance Specification

Bandwidth: 20Gbps

Packet Buffer Memory:2Mbit

Packet Forwarding Rate:15Mpps

MAC Address Table: 8K

InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input12 to 52V DC redundant power
Power Consumption< 10 watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55032, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


CertificationCE FCC Rohs compliance
MTBF300,000hours
Dimensions (W x D x H)143.7 x 103.8 x 47.7 mm
Weight

Product Weight: 0.72KG

Packing Weight: 0.82KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty1-year replacement with new item; 3-years for main parts.

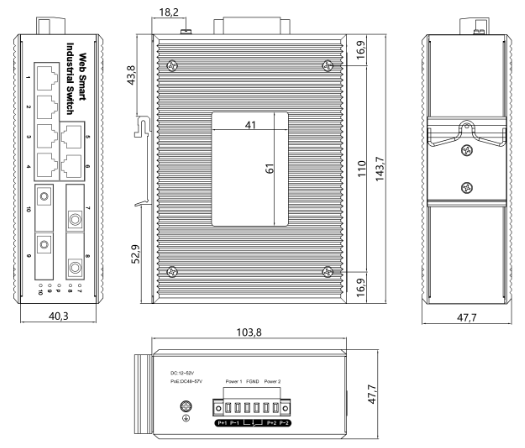

Dimensions
