Software function

The way to surf

the Internet

4/5G dial-up DHCP/Static IP/PPPoE

Number of users

supported

Wired: 253

Operating system

requirements

Windows XP/VISTA Linux 2.6 Windows 7 and

above MAC OS: 10.3.7 and above

Browser

requirements

IE: 6.0 and above Safari:

1.2.4 and above Firefox:

2.0.0.8 and above

Security

management

Set up a firewall to prevent malicious attacks

from the Internet on computers in the LAN. MAC

filtering: prohibit MAC addresses that have been

added.

Access control: Control the access of

computers in the LAN to the Internet. Port

blocking: Block certain viruses from

continuously initiating connections through a

certain port to prevent Dos attacks

System Services

Virtual server: Set an internal server for

Internet users to access DMZ: When the open port

of the virtual server to be set is uncertain, it

can be set as a DMZ host

Port triggering: The wireless router can

automatically open the inward service port

according to the port of the LAN accessing the

Internet.

Serial port service: realize serial port data

transmission, AT command control and other functions

Equipment

management

Locale                                         Software upgrade

NTP server settings                     Remote management

Back up system setup information

                                                    Restart

Recover Settings Information from

File                                               Change

the password and restore to the

factory settings

Data security


PPTP Client

L2TP Client

VPDN/APN



Hardware parameters

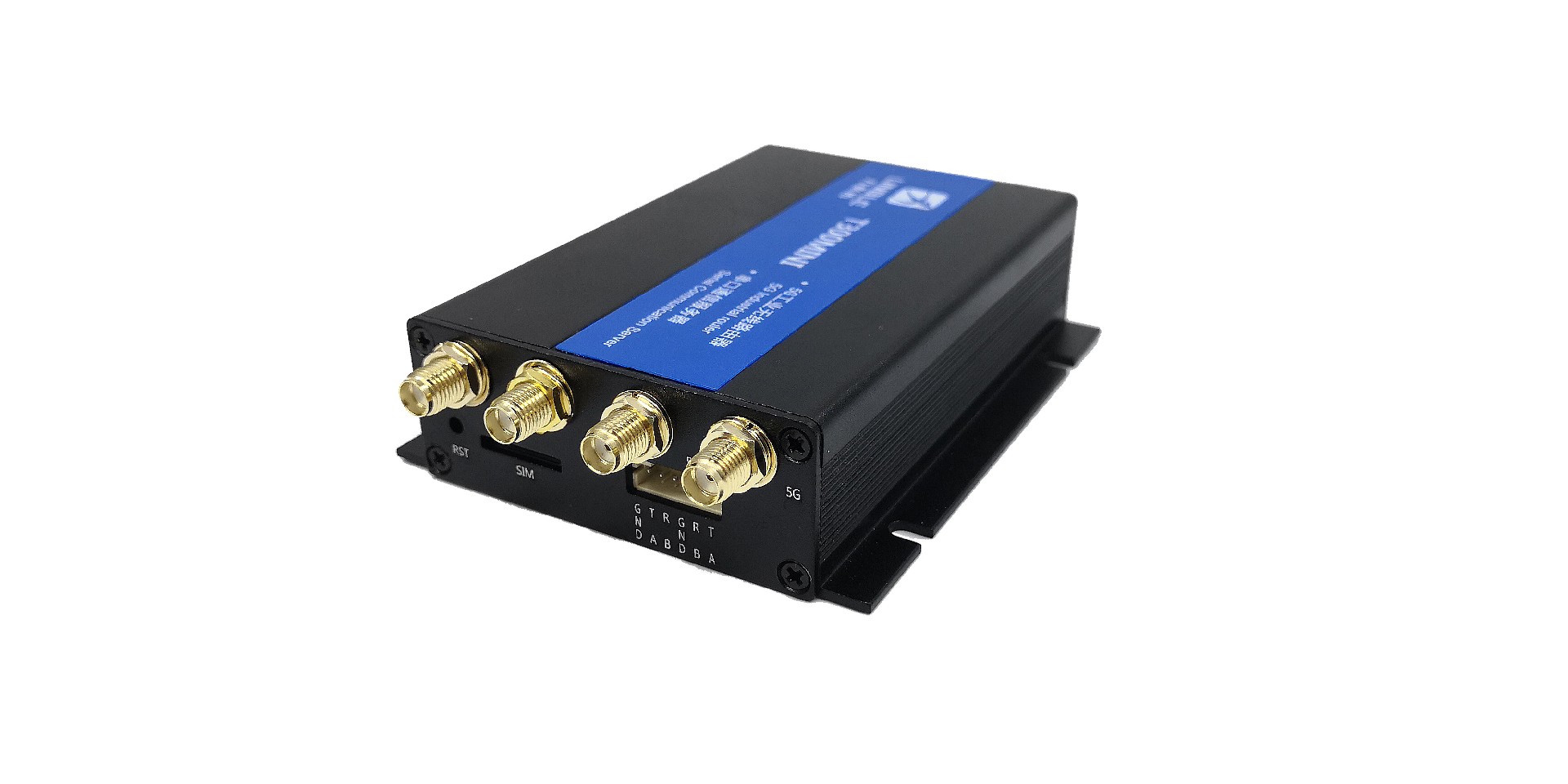

AntennaSMA external rotation and internal hole

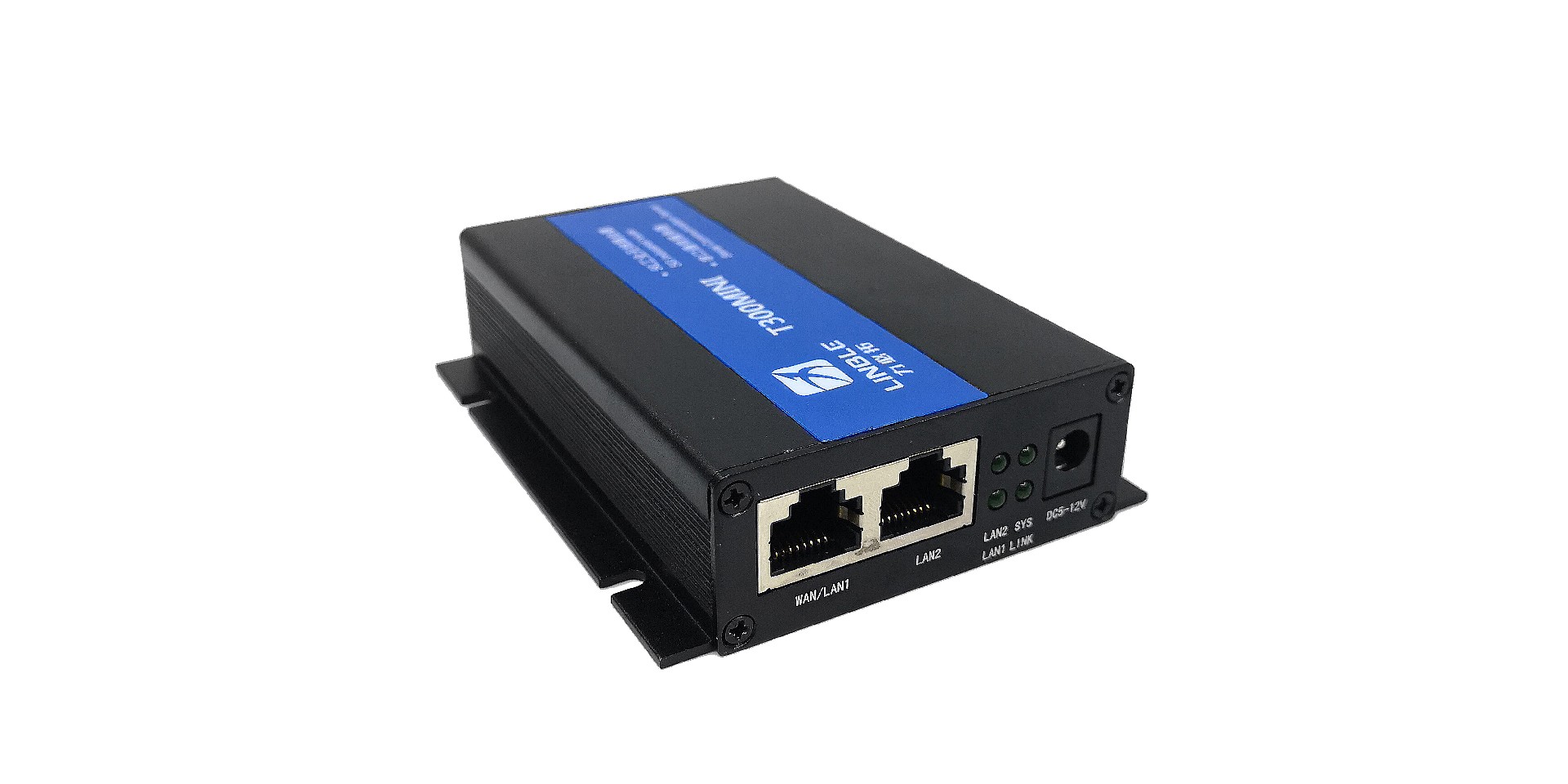

External interface

LAN port: 2 (LAN1 Antenna

interfaces: 4 for WAN/LAN adaptation)

Indicator

lamp: 4

RS232/485 interface: 2 DC power supply

interface: 1 SIM card slot: 1 Reset key:

1


Frequency band

supported

(optional)

GN (Domestic-Qualcomm): Asia, Europe and

Australia:

5G Sub-6: n1, n28, n41, n77, n78, n79

LTE FDD: B1, B2, B3, B5, B7, B8,

LTE TDD: B34, B39, B40, B41

GN (Domestic-Zhanrui)

5G Sub-6: n1, n28, n41, n78, n79

LTE FDD: B1, B2, B3, B5, B7, B8,

LTE TDD: B34, B38,B39, B40, B41


n1/3/5/8/20/28

/38/41/77/78

/79

B1/3/5/7/8/19/

20/28

B38/40/41/42

/43


Main frequency of

storage memory

Store 16 MB

Memory 128MB [on chip]

Main frequency: 880MHz

Overall dimensions

Length, width and height: 97 * 78.2 * 25.5mm

(fixed hole installation)


Power sourceDC power supply: 6-36 V/3A

Power consumption

(current)

Less than 800mA
Work environment

Operating temperature:-30°C~+70°C

Storage temperature:-40°C~+85°C

Humidity:5%~95%,non-condensing
