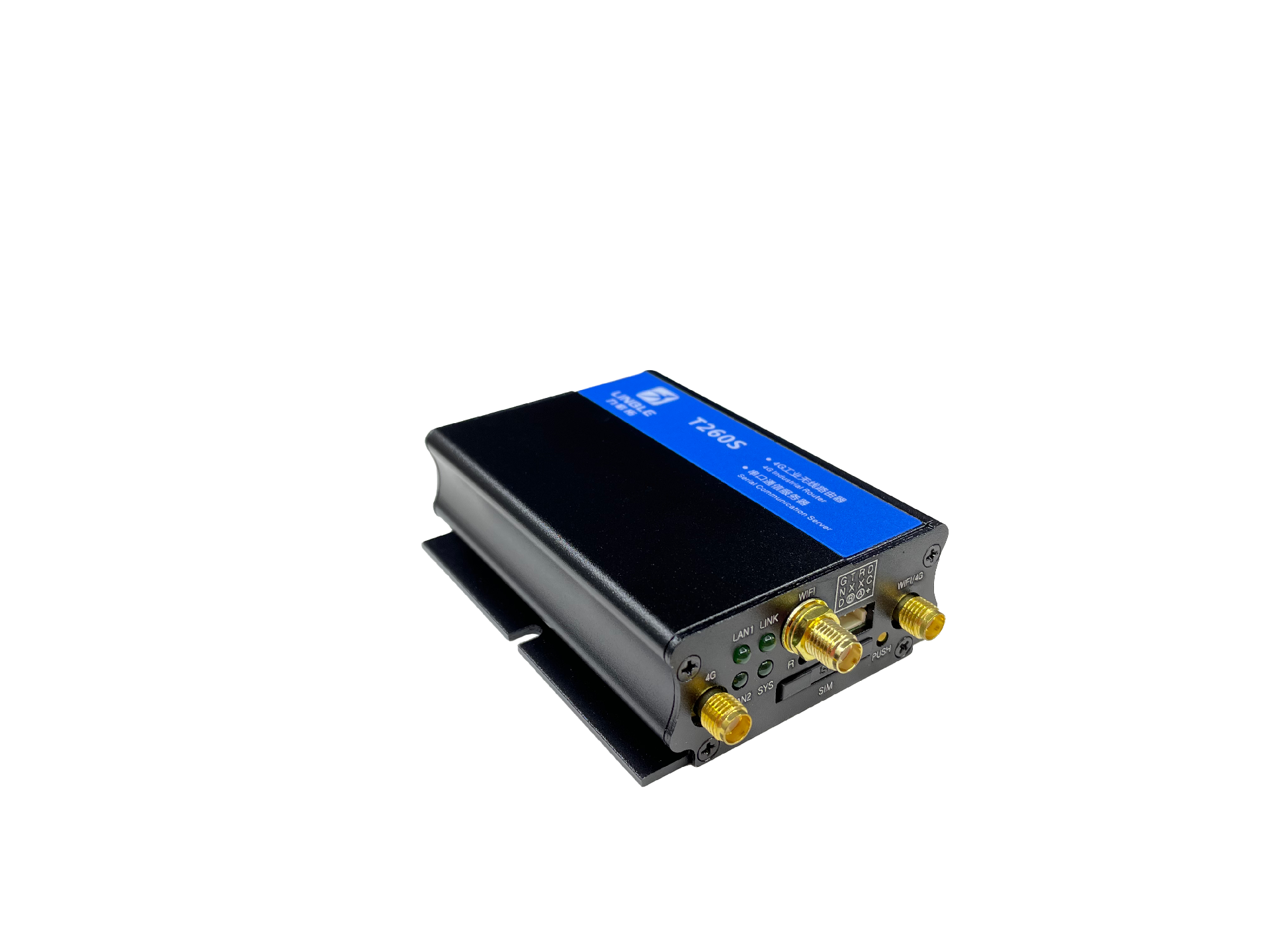

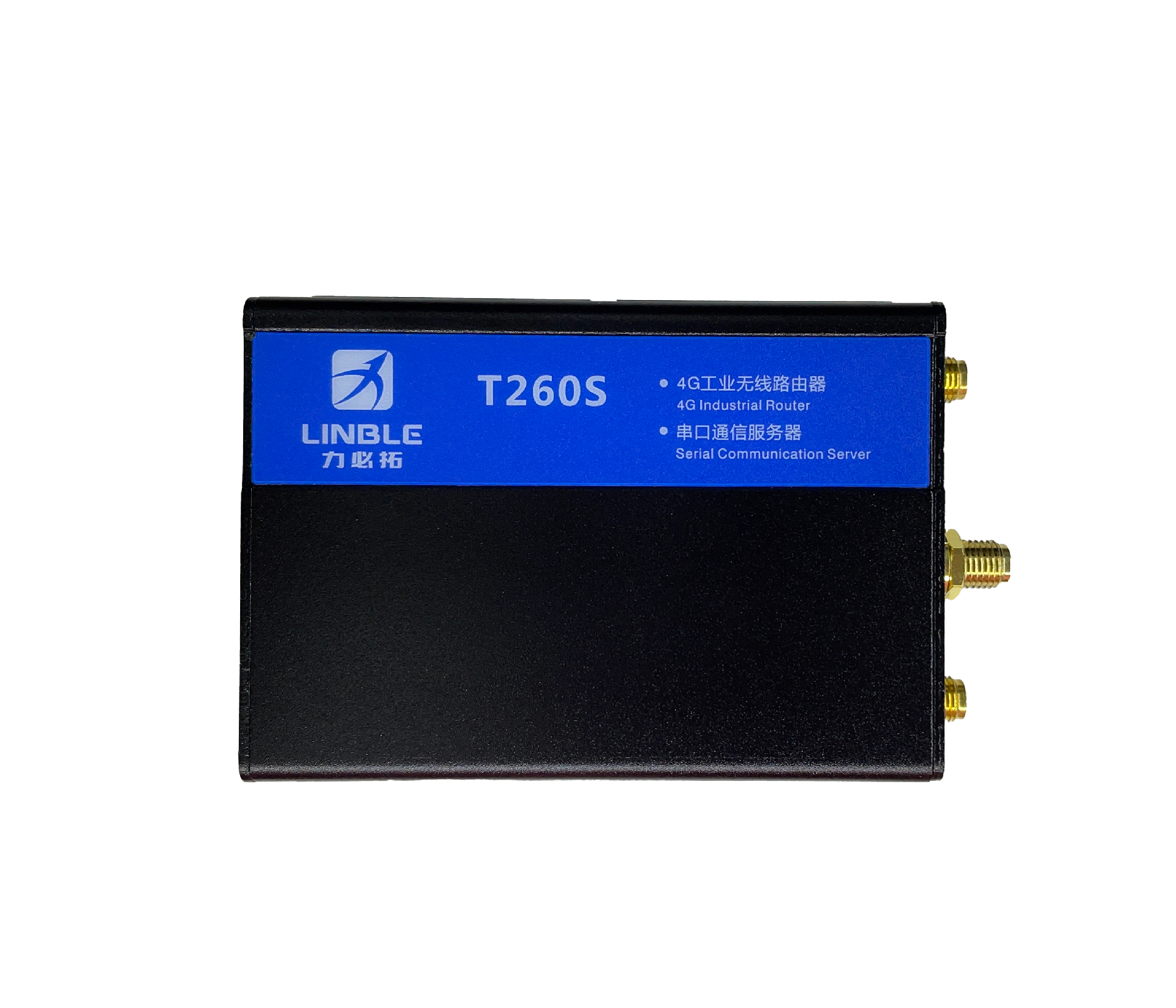

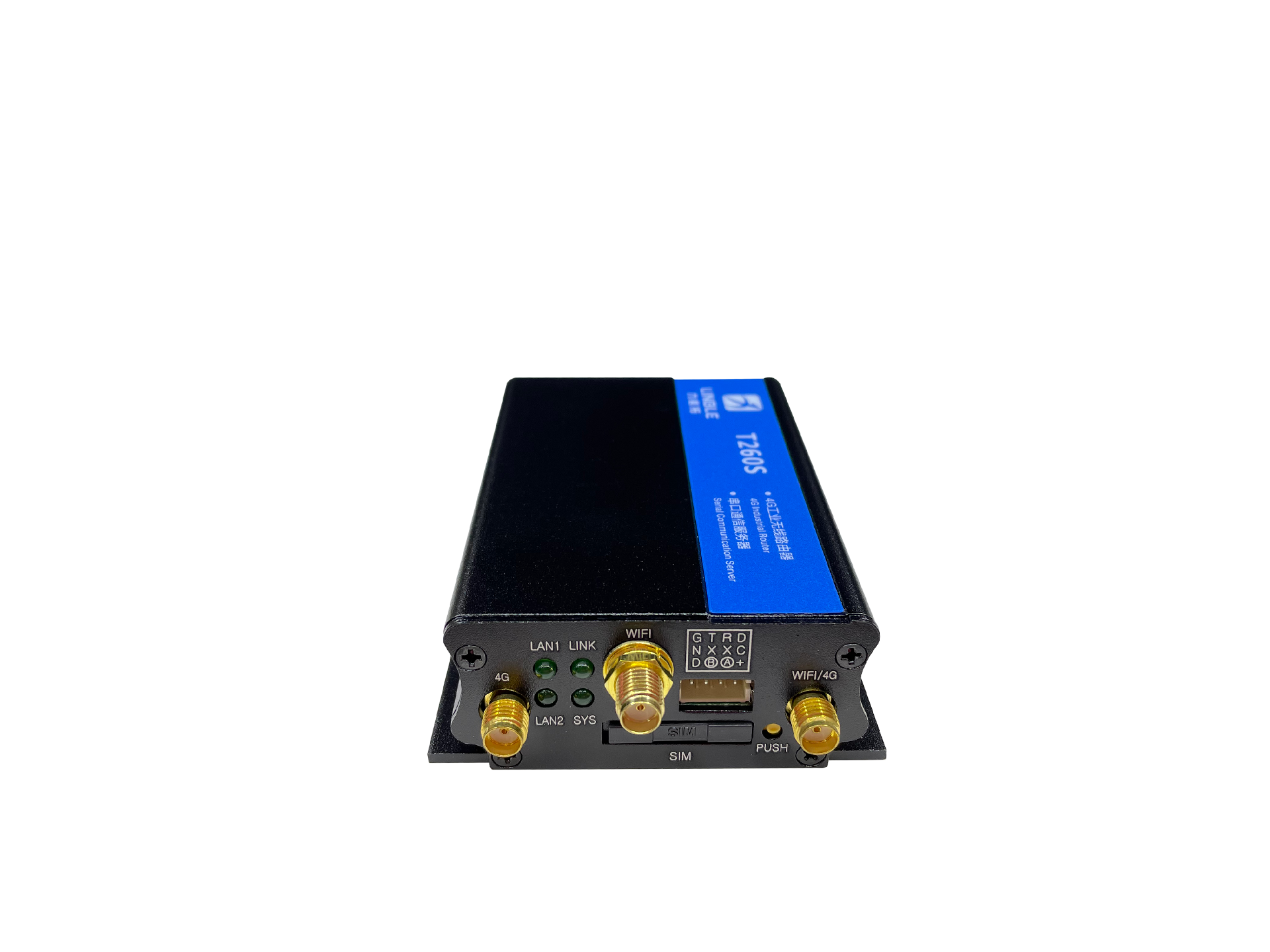

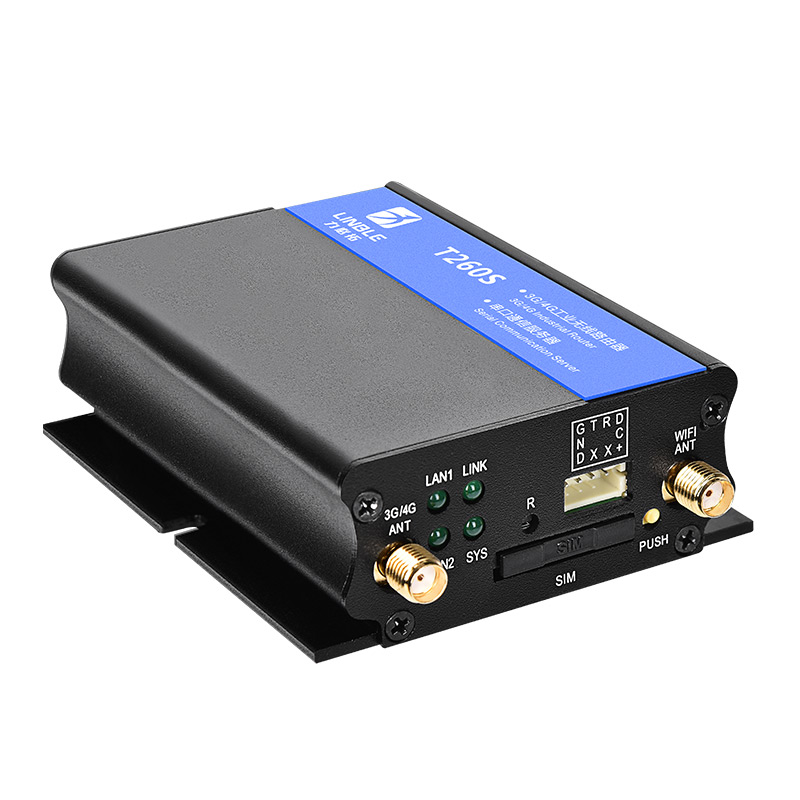

T260s|4G Industrial Router
支持多种传输方式
Security monitoring, vending machine embedded industrial router T260S, which is mainly applied to the data transmission business of industrial users, supporting data transparency, image transmission, equipment monitoring and wireless routing Internet access and other functions.
- Product details
- Specification parameter
- Data download
- Prototype application
Rapid deployment of industrial communications networks ① Support 4G to wired, 4G to wifi, 4G to serial port ② Supports VPN (PPTP Client,L2TP Client) secure protocol transmission ③ Built-in guard dog protection, 24 hours no downtime, stable and high-speed operation of the equipment ④ Serial port power supply and network port lightning protection, surge protection, anti-reverse connection, anti-static, and overvoltage protection |
More stable and complete product features ① Protection level: IP30 ② DC power supply: 12-35V/1A ③ Working environment: 40°C ~ +80°C ④ Dimensions: 83*66*26mm |
◆Data download,◆Technical specifications
| LBT-T300-T260s Data download 【Click the text to download ↓ 】 | |
| Firmware | LBT-T300-T260sFirmware5350，LBT-T300-T260sFirmware7628 |
| Specification | LBT-T300-T260sSpecification7628 |
| Product manual | LBT-T300-T260sProduct manual7628 |
| LBT-T300-T310 Technical specifications | |
| Software function | |
| Access mode | DHCP/Static IP/PPPOE for 4G dial-up |
| Number of supported users | Wired: 253, wireless: 30 |
| Operating system requirements | Windows XP/VISTA Linux 2.6 Windows 7 or later MAC OS: 10.3.7 or later |
| Browser requirements | Internet Explorer :6.0 or later Safari:1.2.4 or later Firefox:2.0.0.8 or later |
| Safety management | MAC filtering: disables the added MAC addresses |
| Set a firewall: prevent malicious attacks on computers on the LAN from the Internet | |
| Access control: Controls the Internet access permissions of computers on the LAN | |
| Port blocking: Prevents viruses from continuously launching connections through a port to prevent Dos attacks | |
| System service | Virtual server: Set an internal server for Internet users to access |
| DMZ: If the open port of the virtual server to be set is uncertain, you can set it as a DMZ host | |
| Port trigger: The wireless router can automatically open inward service ports based on the port used by the LAN to access the Internet | |
| Serial port service: serial port data transmission, AT command control and other functions | |
| Equipment management | Area Settings, restoring factory Settings, NTP server Settings, backing up system Settings, and restoring Settings from files |
| Software upgrade, remote management, reboot, password change | |
| WLAN security mode | WPAPSK, wpa-psk, wpa2-psk, Open System, WPA2PSK(that is, wPA-psk and, WPA2 mixed modes), wPA2-psk mixed modes), WPA1WPA2(that is, WPA and |
| Hardware parameter | |
| antenna | SMA external rotation of the inner hole |
| Wireless interface | IEEE802.11b/g/n |
| Operating frequency band | 2400-2483.5MHz |
| WIFI transmission rate | 150-300Mbps（MAX） |
| External interface | Reset key: 1 |
| Indicator light: 4 | |
| Antenna interface: 1-4 (optional) | |
| SIM card slot: 1 | |
| DC power port: 1 | |
| RS232/485 port: 1 | |
| LAN port: 2 (LAN1 is WAN/LAN adaptive) | |
| WiFi data | 802.11b: -86dBm at 11Mbps/CCK：+18 dBm |
| 802.11g: -73dBm at 54Mbps/OFDM：+15.5dBm | |
| 802.11n: -66dBm at 300Mbps/HT40 MCS7：+15.5dBm | |
| Supported frequency band (optional) | GN(Domestic - default)：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 |
| Europe：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 | |
| North America(NA)：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 | |
| Global：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 | |
| Storage memory | Storage 8MB, memory 32/64MB |
| Power supply | Dc power supply: 12-35V/1A (optional voltage 12/24V) |
| Power consumption (current) | Less than 400mA |
| Overall dimension | Length width height: 88*66*26mm (without antenna interface) |
| Working environment | Operating temperature: -40°C ~ +80°C |
| Storage temperature: -50°C ~ +90°C | |
| Humidity: 5%~95%, no condensation | |
| Certification | CE、FCC、CCC |
