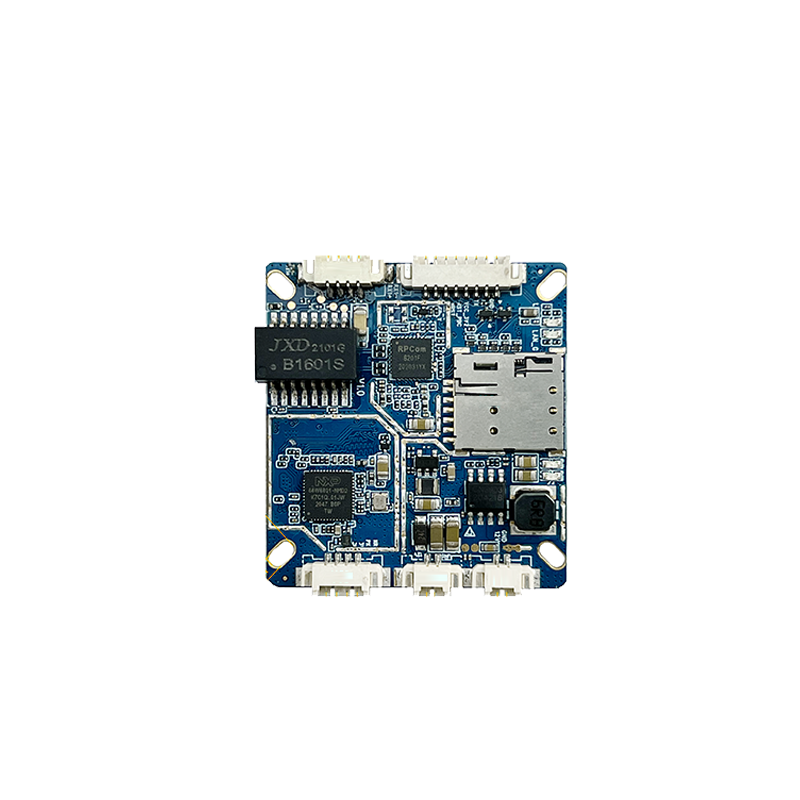

M400-C3|4G Routing Module
Software functionThe way to surfthe Internet4G dial-up DHCP/Static IPNumber of userssupportedWired: 253, Wireless: 10 (theoretical)Operating systemrequirementsWindows XP/VISTA Linux 2.6 Windows 7 andabove MAC OS: 10.3.7 and aboveBrowserrequirementsIE: 6.0 and above Safa
- Product details
- Specification parameter
- Data download
- Prototype application
Software function
The way to surf the Internet | 4G dial-up DHCP/Static IP |
Number of users supported | Wired: 253, Wireless: 10 (theoretical) |
Operating system requirements | Windows XP/VISTA Linux 2.6 Windows 7 and above MAC OS: 10.3.7 and above |
Browser requirements | IE: 6.0 and above Safari: 1.2.4 and above Firefox: 2.0.0.8 and above |
| Panel interface area Internet | Panel interface areaManual screen selection The Internet is openMEP settings Traffic statisticsUSSD pin code management |
Home Network | DHCP Settings Connected Device Log User Firewall Rules Port Filtering Port mapping |
Phone book SMS | Phone book SMS |
| Wireless router | Wireless settings Wireless Security Settings Wireless Mac Filtering User Management Configuration Management Software Upgrade Restart Router Close Router Time Settings SD Card Files SD Card Management ACS Management |
Hardware parameters
| Wireless interface | IEEE802.11b/g/n |
Operating frequency band | 2400-2483.5Mhz |
| Antenna | PEX1 generation bus |
WIFI transmission rate | 150Mbps(MAX) |
| External interface | LAN port: 1 (LAN 1Antenna interface: 1-4 (optional) (WAN/LAN adaptive)Indicator lamp: 4 TTL interface: 1Terminal power supply interface: 1 SIM card slot: 1Reset key: 1 USB 2.0: 1 |

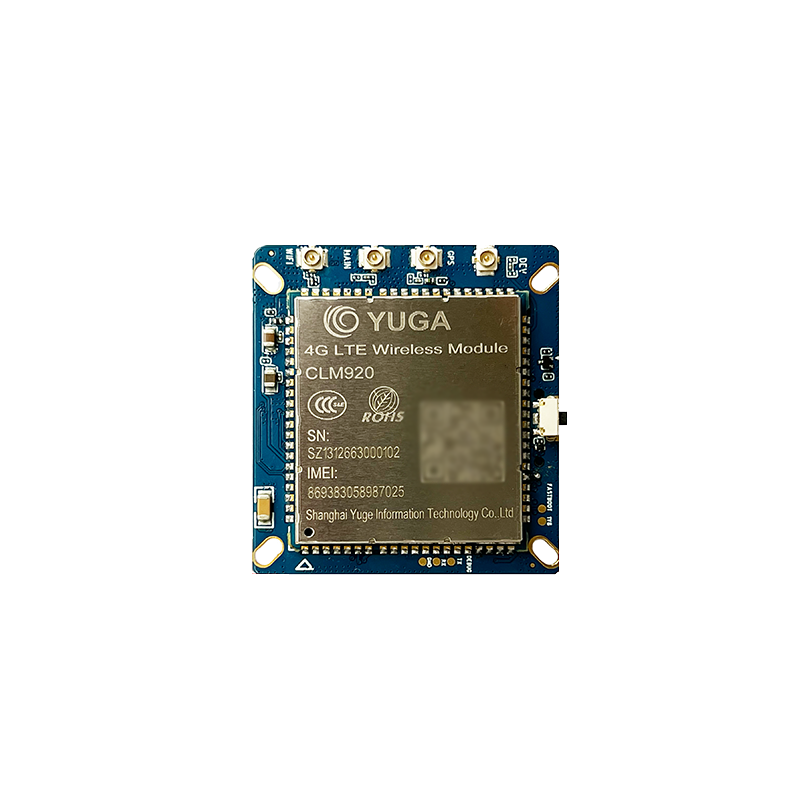

Frequency band supported (optional) | CLM920 _ JD3CN (equipped with 4G module): TDD LTE: B34/B38/B39/B40/B41 FDD LTE: B1/B3/B5/B8 WCDMA: B1/B5/B8 CLM920 _ JD3CN (with 4G module): TDD LTE: B38/B40/B41 FDD LTE: B1/B3/B5/B7/B8/B20/B28 WCDMA: B1/B5/B8 CLM920 _ JD3CN (with 4G module): TDD LTE: B38/B40/B41 FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B12/ B17/B66 WCDMA: B1/B2/B4/B5/B8 |
| Overall dimensions | Length, width and height: 38.0 * 43.5 * 10mm (fixed hole installation) |
| Power source | DC power supply: 6-25 V/3A |
Power consumption (current) | Less than 400mA |
| Work environment | Operating temperature:-20°C~+70°C Storage temperature:-30°C~+80°C |
