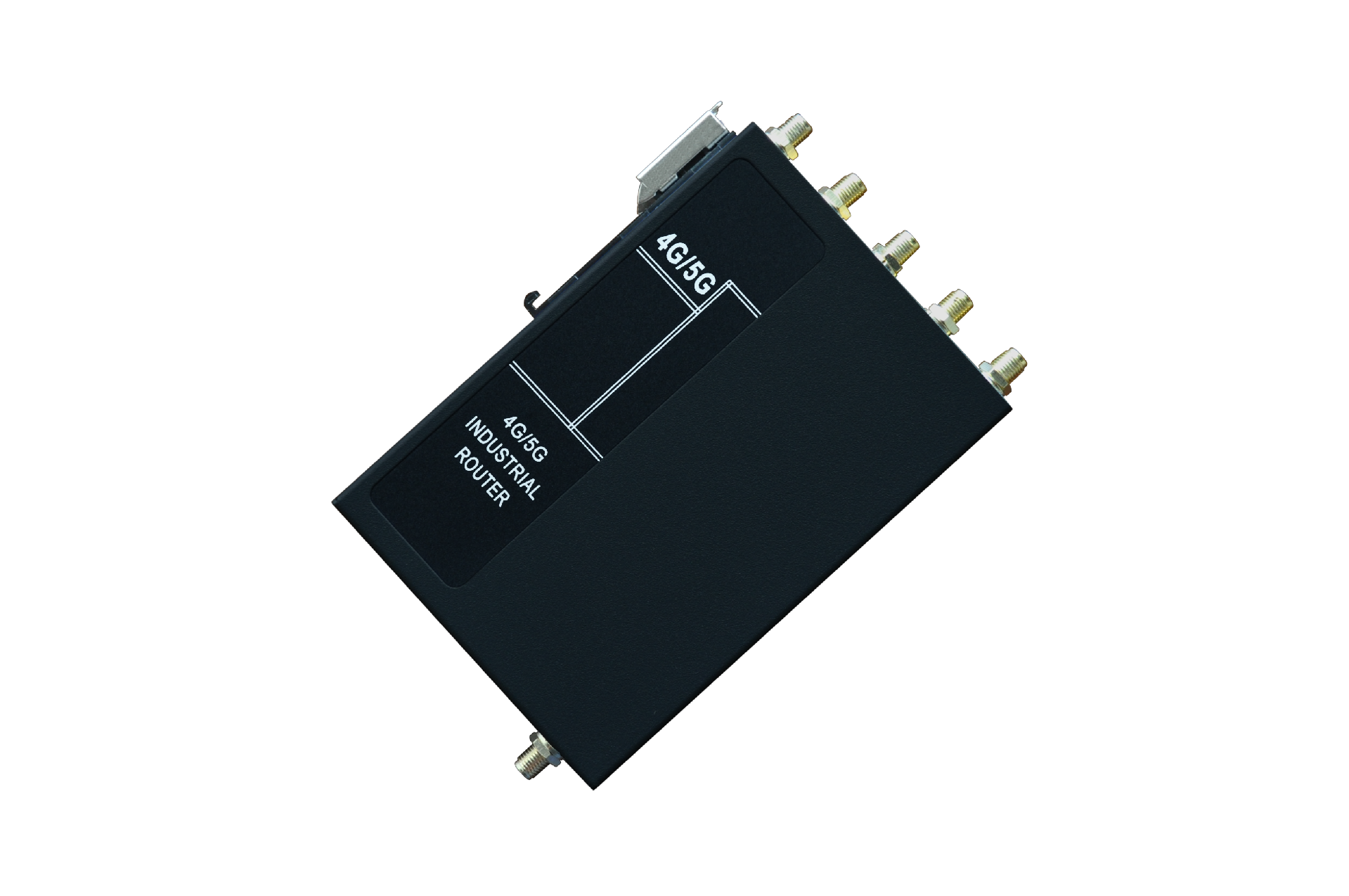

T300mini2|5GIndustrial Router
Software functionThe way to surfthe Internet4/5G dial-up DHCP/Static IP/PPPoENumber of userssupportedWired: 253, Wireless: 30Operating systemrequirementsWindows XP/VISTA Linux 2.6 Windows 7 andabove MAC OS: 10.3.7 and aboveBrowserrequirementsIE: 6.0 and above Safari:&nb
- Product details
- Specification parameter
- Data download
- Prototype application
Software function
The way to surf the Internet | 4/5G dial-up DHCP/Static IP/PPPoE |
Number of users supported | Wired: 253, Wireless: 30 |
Operating system requirements | Windows XP/VISTA Linux 2.6 Windows 7 and above MAC OS: 10.3.7 and above |
Browser requirements | IE: 6.0 and above Safari: 1.2.4 and above Firefox: 2.0.0.8 and above |
Security management | Set up a firewall to prevent malicious attacks from the Internet on computers in the LAN. MAC filtering: prohibit MAC addresses that have been added. Access control: Control the access of computers in the LAN to the Internet. Port blocking: Block certain viruses from continuously initiating connections through a certain port to prevent Dos attacks |
| System Services | Virtual server: Set an internal server for Internet users to access DMZ: When the open port of the virtual server to be set is uncertain, it can be set as a DMZ host Port triggering: The wireless router can automatically open the inward service port according to the port of the LAN accessing the Internet. Serial port service: realize serial port data transmission, AT command control and other functions |
Equipment management | Locale Software upgrade NTP server settings Remote management Back up system setup information Restart Recover Settings Information from File Change the password and restore to the factory settings |
WLAN security mode | Open System WPA2PSK (ie WPA-PSK WPA-PSK and WPA2-PSK WPA2-PSK mixed mode) WPAPSK WPA1WPA2 (i.e. WPA and WPA2 mixed mode) |
Hardware parameters
| Wireless interface | IEEE802.11b/g/n |
Operating frequency band | 2412-2472MHz |
| Antenna | SMA external rotation and internal hole |
WIFI transmission rate | 300Mbps（MAX） |

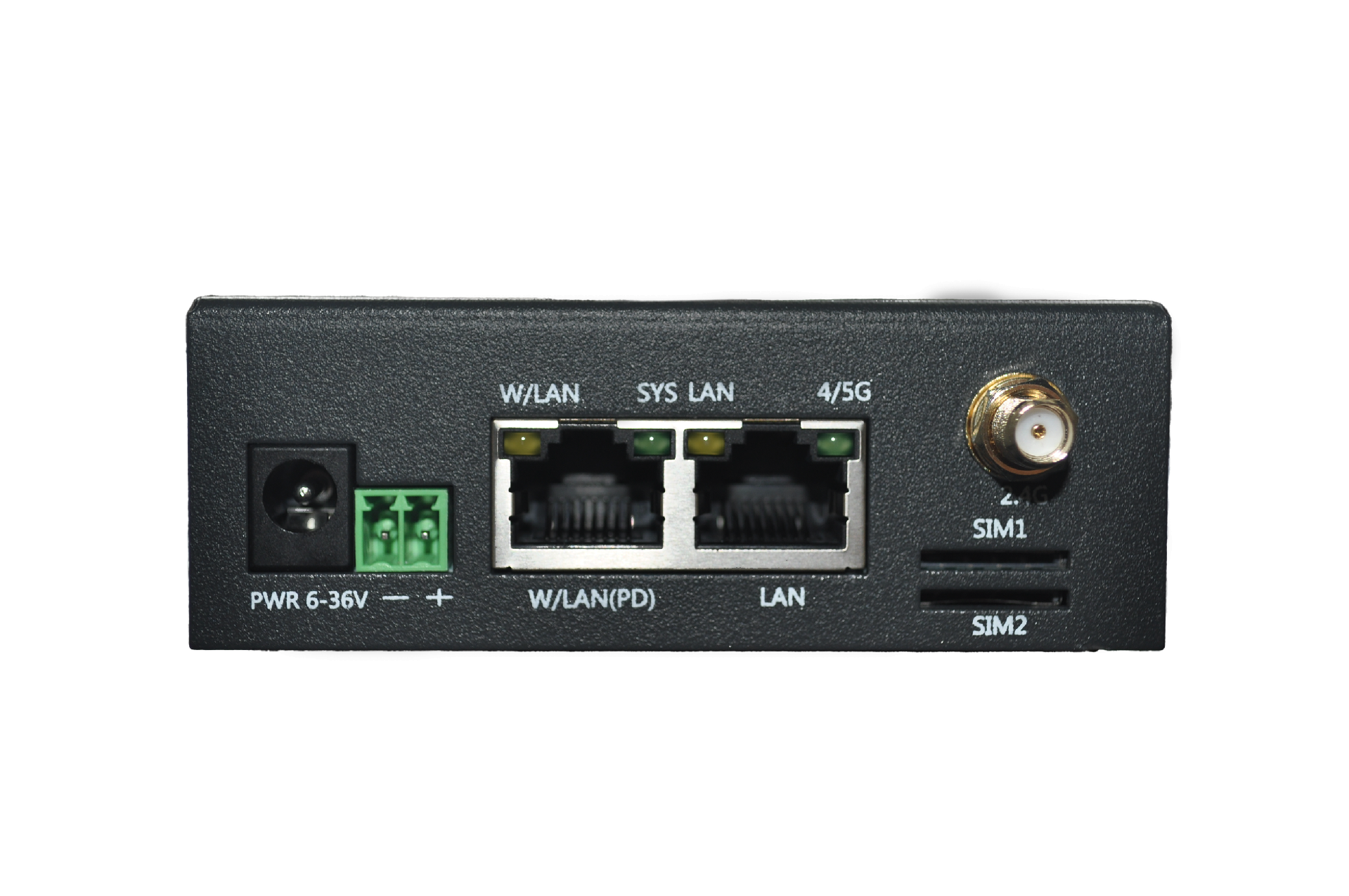

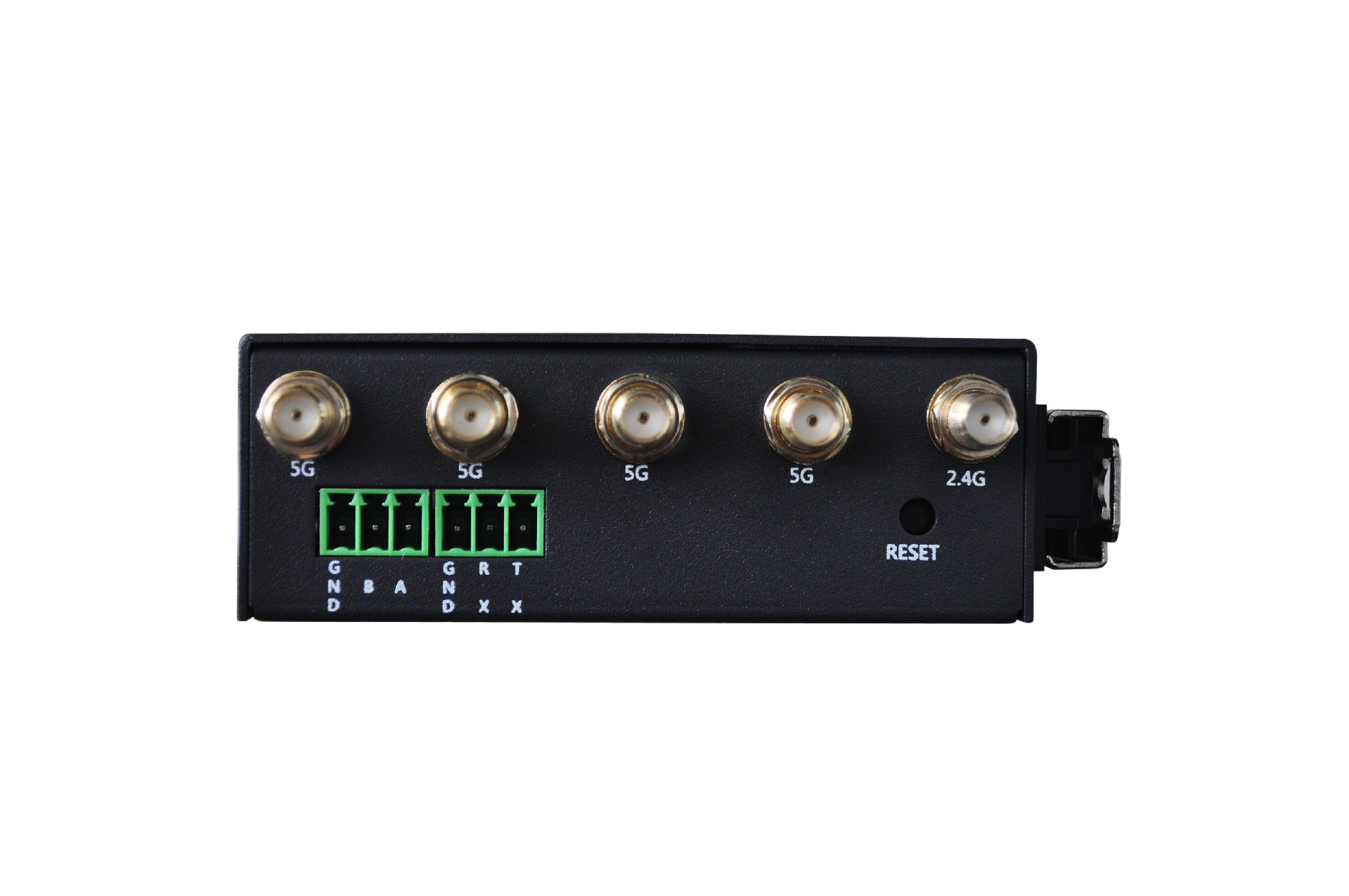

| External interface | LAN port: 2 (LAN1 Antenna interface: 6 (optional) (WAN/LAN adaptive) Indicator light: 4 RS232/485 interface: 1 DC power supply interface: 1 SIM card slot: 1 Reset key: 1 |
| WIFI data | 802.11n: -66dBm at 300Mbps/HT40 MCS7 +15.5dBm 802.11b: -86dBm at 11Mbps/CCK: +18dBm 802.11g: -73dBm at 54Mbps/OFDM: +15.5dBm |
Frequency band supported (optional) | GN (Domestic-Qualcomm): Asia, Europe and Australia: 5G Sub-6: n1, n28, n41, n77, n78, n79 LTE FDD: B1, B2, B3, B5, B7, B8, LTE TDD: B34, B39, B40, B41 GN (Domestic-Zhanrui) 5G Sub-6: n1, n28, n41, n78, n79 LTE FDD: B1, B2, B3, B5, B7, B8, LTE TDD: B34, B38,B39, B40, B41 n1/3/5/8/20/28 /38/41/77/78 /79 B1/3/5/7/8/19/ 20/28 B38/40/41/42 /43 |
Main frequency of storage memory | Store 16 MB Memory 128MB [on chip] Main frequency: 880MHz |
| Overall dimensions | Length, width and height: 123 * 84.2 * 30 mm (optional guide rail and fixed plate installation) |
| Power source | DC power supply: 6-36 V/3A |
Power consumption (current) | Less than 800mA |
| Work environment | Operating temperature:-30°C~+70°C Storage temperature:-40°C~+85°C Humidity:5%~95%,non-condensing |
