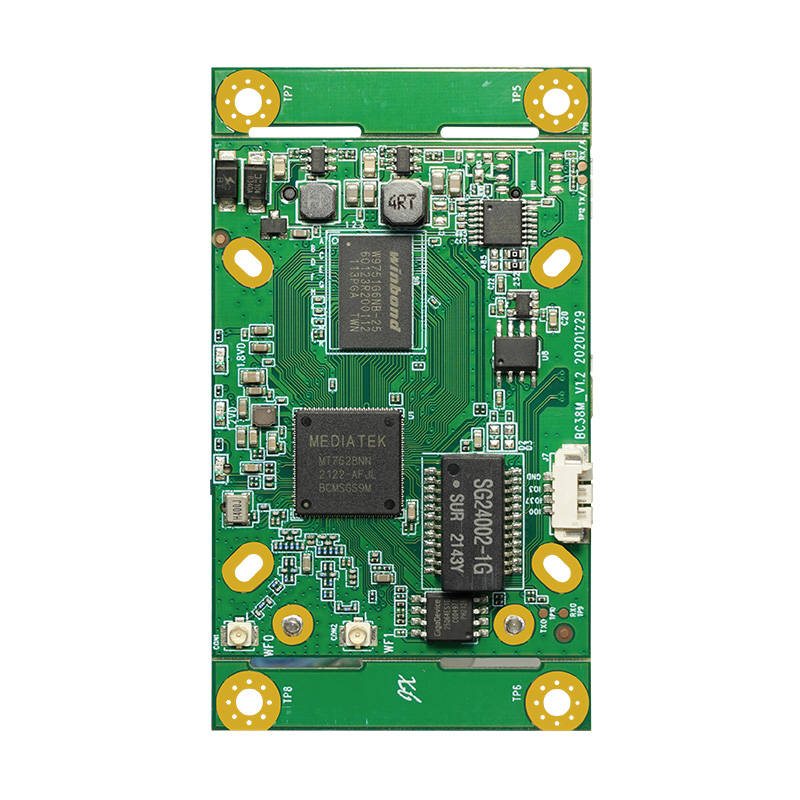

M400-D|4G Routing Module
Software functionThe way to surfthe Internet4G dial-up DHCP/Static IP/PPPoENumber of userssupportedWired: 253, Wireless: 30Operating systemrequirementsWindows XP/VISTA Linux 2.6 Windows 7 andabove MAC OS: 10.3.7 and aboveBrowserrequirementsIE: 6.0 and above Safari:
- Product details
- Specification parameter
- Data download
- Prototype application
Software function
The way to surf the Internet | 4G dial-up DHCP/Static IP/PPPoE |
Number of users supported | Wired: 253, Wireless: 30 |
Operating system requirements | Windows XP/VISTA Linux 2.6 Windows 7 and above MAC OS: 10.3.7 and above |
Browser requirements | IE: 6.0 and above Safari: 1.2.4 and above Firefox: 2.0.0.8 and above |
Security management | Set up a firewall to prevent malicious attacks from the Internet on computers in the LAN. MAC filtering: prohibit MAC addresses that have been added. Access control: Control the access of computers in the LAN to the Internet. Port blocking: Block certain viruses from continuously initiating connections through a certain port to prevent Dos attacks |
| System Services | Virtual server: Set an internal server for Internet users to access DMZ: When the open port of the virtual server to be set is uncertain, it can be set as a DMZ host Port triggering: The wireless router can automatically open the inward service port according to the port of the LAN accessing the Internet. Serial port service: realize serial port data transmission, AT command control and other functions |
Equipment management | Locale Software upgrade NTP server settings Remote management Back up system setup information Restart Recover Settings Information from File Change the password and restore to the factory settings |
WLAN security mode | Open System WPA2PSK (ie WPA-PSK WPA-PSK and WPA2-PSK WPA2-PSK mixed mode) WPAPSK WPA1WPA2 (i.e. WPA and WPA2 mixed mode) |
Hardware parameters
| Wireless interface | IEEE802.11b/g/n |
Operating frequency band | 2400-2483.5Mhz |
| Antenna | IPEX Generation Female |
WIFI transmission rate | 150-300Mbps（MAX） |
| External interface | LAN port: 2 (LAN1 is WAN/LAN adaptive) RS232/485 interface: 1 SIM card slot: 1 Antenna connector: 1-4 (optional) Indicator light: 3 Terminal power supply interface: 1 reset key: 1 |
| WIFI data | 802.11n: -66dBm at 300Mbps/HT40 MCS7 +15.5dBm 802.11b: -86dBm at 11Mbps/CCK: +18dBm 802.11g: -73dBm at 54Mbps/OFDM: +15.5dBm |
Frequency band supported (optional) | GN (Domestic-Default): FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 Europe FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 North America (NA)： FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 Global FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
storage memory | Store 8MB Memory 64MB |
| Overall dimensions | Length, width and height: 74 X 42 X 12.5 mm (fixed hole installation) |
| Power source | DC supply: 12 V/1A |
Power consumption (current) | Less than 400mA |
| Work environment | Operating temperature:-30°C~+70°C Storage temperature:-40°C~+85°C Humidity:5%~95%,non-condensing |
