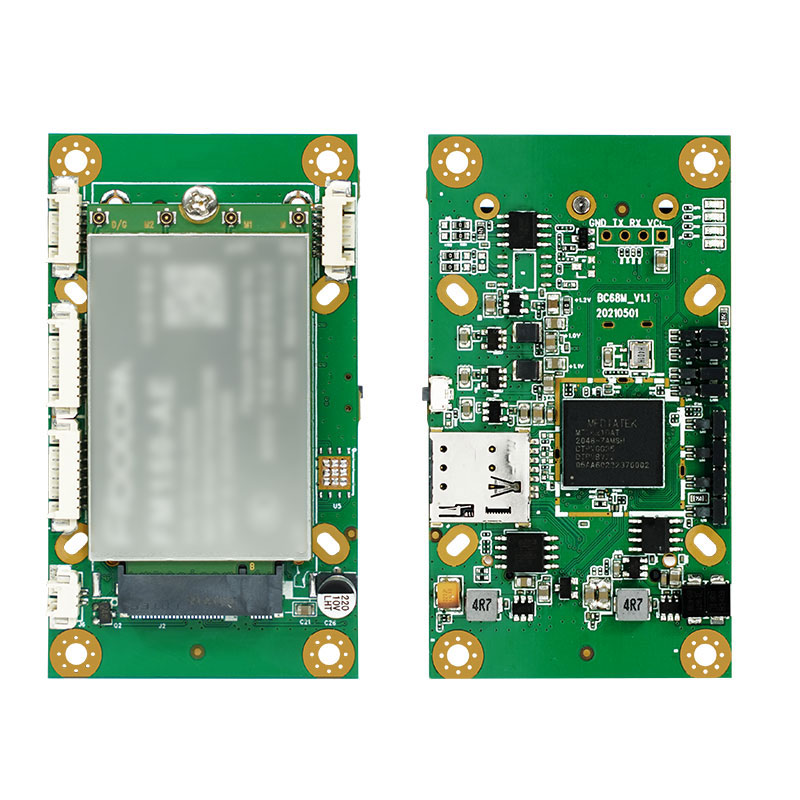

M400-E|5G Routing Module
Software functionThe way to surfthe Internet4/5G dial-up DHCP/Static IP/PPPoENumber of userssupportedWired: 253, Wireless: 30Operating systemrequirementsWindows XP/VISTA Linux 2.6 Windows 7 andabove MAC OS: 10.3.7 and aboveBrowserrequirementsIE: 6.0 and above Safari:&nb
- Product details
- Specification parameter
- Data download
- Prototype application
Software function
The way to surf the Internet | 4/5G dial-up DHCP/Static IP/PPPoE |
Number of users supported | Wired: 253, Wireless: 30 |
Operating system requirements | Windows XP/VISTA Linux 2.6 Windows 7 and above MAC OS: 10.3.7 and above |
Browser requirements | IE: 6.0 and above Safari: 1.2.4 and above Firefox: 2.0.0.8 and above |
Security management | Set up a firewall to prevent malicious attacks from the Internet on computers in the LAN. MAC filtering: prohibit MAC addresses that have been added. Access control: Control the access of computers in the LAN to the Internet. Port blocking: Block certain viruses from continuously initiating connections through a certain port to prevent Dos attacks |
| System Services | Virtual server: Set an internal server for Internet users to access DMZ: When the open port of the virtual server to be set is uncertain, it can be set as a DMZ host Port triggering: The wireless router can automatically open the inward service port according to the port of the LAN accessing the Internet. Serial port service: realize serial port data transmission, AT command control and other functions |
Equipment management | Locale Software upgrade NTP server settings Remote management Back up system setup information Restart Recover Settings Information from File Change the password and restore to the factory settings |
Data security | PPTP Client L2TP Client |
Hardware parameters
| Antenna | IPEX4 generation bus |
| External interface | LAN port: 2 (LAN1 is Antenna interface: 4 WAN/LAN adaptive) Indicator light: 4 RS232/485 interface: 2 Terminal power supply interface: 1 SIM card slot: 1 Reset key: 1 |
Frequency band supported (optional) | GN (Domestic-Qualcomm): Asia, Europe and Australia: 5G Sub-6: n1, n28, n41, n77, n78, n79 LTE FDD: B1, B2, B3, B5, B7, B8, LTE TDD: B34, B39, B40, B41 GN (Domestic-Zhanrui) 5G Sub-6: n1, n28, n41, n78, n79 LTE FDD: B1, B2, B3, B5, B7, B8, LTE TDD: B34, B38,B39, B40, B41 n1/3/5/8/20/28 /38/41/77/78 /79 B1/3/5/7/8/19/ 20/28 B38/40/41/42 /43 |
Main frequency of storage memory | Store 16 MB Memory 128MB [on chip] Main frequency: 880MHz |
| Overall dimensions | Length, width and height: 74.09 x41.92 x9.45 mm (fixed hole installation) |
| Power source | DC supply: 12 V/2A |
Power consumption (current) | Less than 400mA |
| Work environment | Operating temperature:-30°C~+70°C Storage temperature:-40°C~+85°C Humidity:5%~95%,non-condensing |
