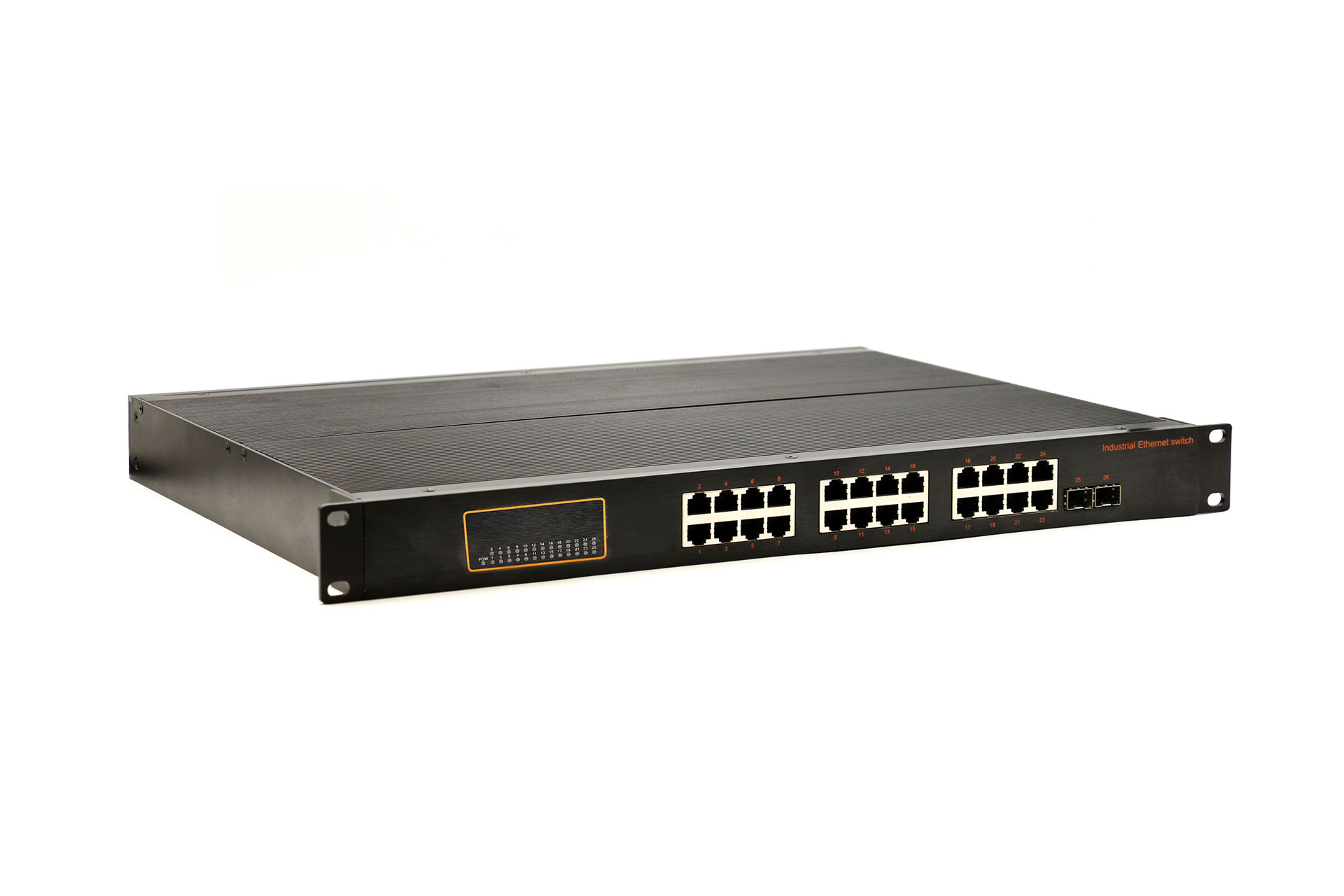

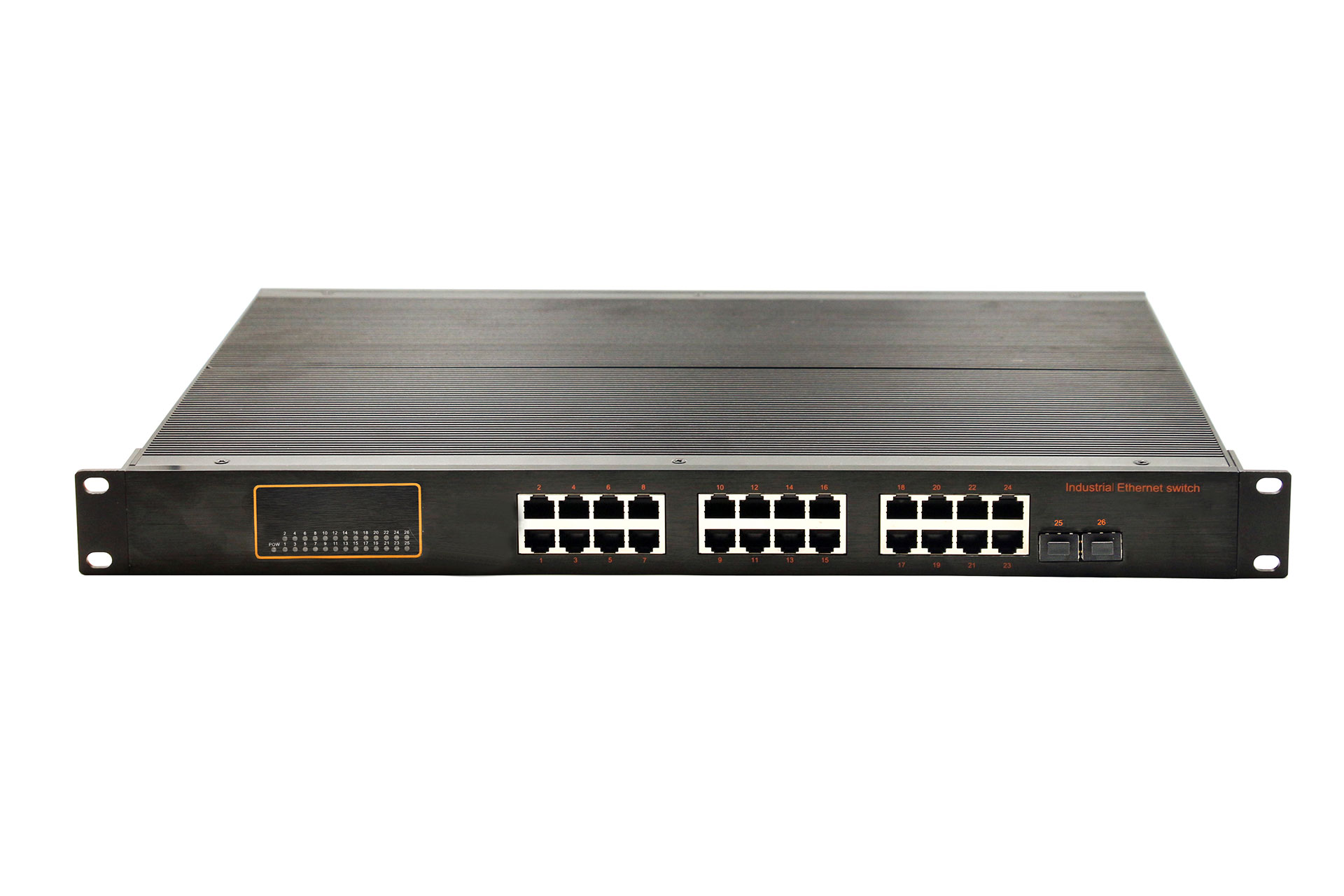

LBTD224G-SFP
24-port 10/100/1000BASE-TX +2G SFP Industrial Ethernet SwitchLBTD224G-SFP an hardened 24-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 24-port 10/100/1000BASE-TX RJ45 copper interfaces +2 Port 10/100/1000 SFP de
- Product details
- Specification parameter
- Data download
- Prototype application
24-port 10/100/1000BASE-TX +2G SFP Industrial Ethernet Switch
LBTD224G-SFP an hardened 24-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 24-port 10/100/1000BASE-TX RJ45 copper interfaces +2 Port 10/100/1000 SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The LBTD224G-SFP series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
Interface
•24-Port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/MDI-X function
•2-Port SFP uplink
Industrial conformance
•AC110-240V power input
•-40℃ to 80℃ operating temperature
•IP40 aluminum housing
•Supports Air discharge: ±12kV
•Contact discharge: ±8kV
•Free Fall, Shock and Vibration Stability
•Rak-mountable design
Specifications:
| Model No. | LBTD224G-SFP |
| 10/100/1000Base-TX Port | 24 port RJ-45 auto-MDI / MDI-X 2 port SFP |
| Performance Specification | Bandwidth: 56Gbps Packet Buffer Memory:4.1Mbit Packet Forwarding Rate:42Mpps MAC Address Table: 8K |
| Installation | Rak moutable |
| Maximum Frame Size | 9000bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 aluminum housing |
| LED Indicator | Power: Red Ethernet: Yellow POE: Green |

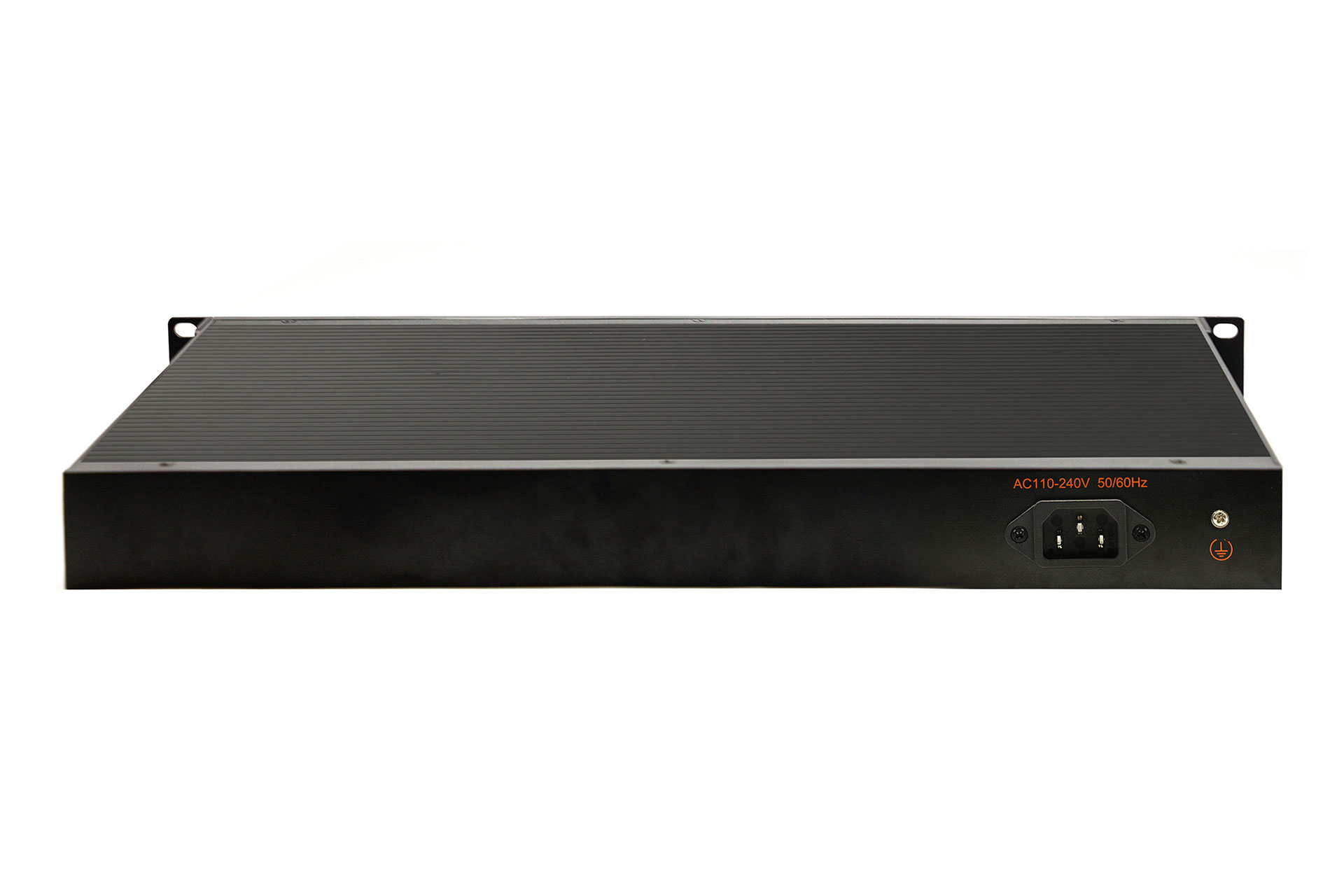

| Power Input | AC110-240V |
| Power Consumption | < 10 watts |
| Surge protection | ±4KV |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Industry Standard | IEC 61000-4-4 (EFT), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| MTBF | 300,000hours |
| Dimensions (W x D x H) | |
| Weight | Product Weight: 3KGS Packing Weight: 3.8KGS |
| Working Environment | Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
