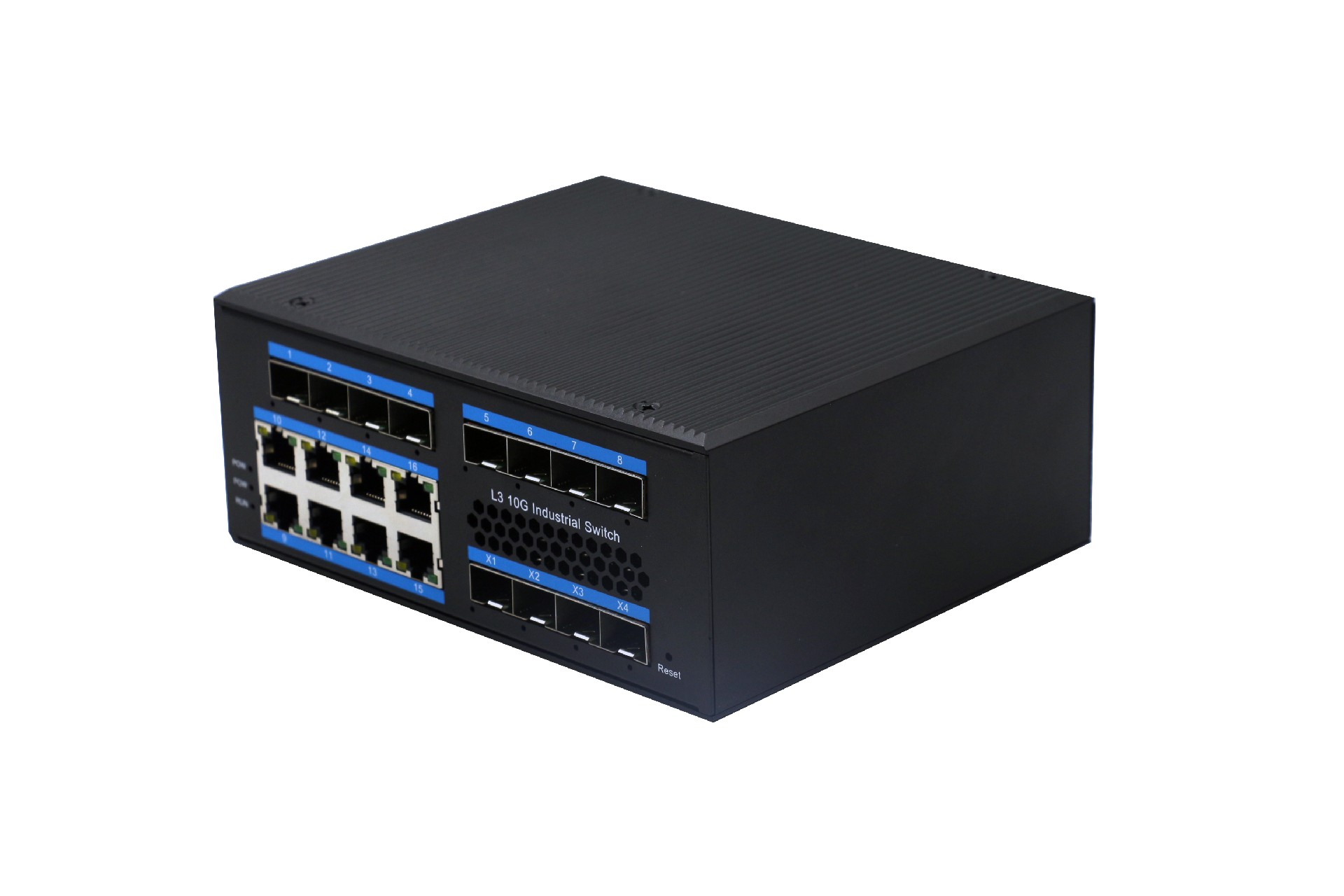

8 Port gigabit +4 Port 10G SFP L3 Managed Industrial Switch


Din-rail Aluminum Industrial Switch

LBT88GST4-M-SFP switch is a high performance  8 Port gigabit (PoE)+ 8 Port gigabit SFP+10G SFP+ L3 core switch. It provides Static routing and dynamic routing with advanced hardware processing capacity. The machine adopts modular design, which supports up to 4 Port 10G SFP+, and retains the expansion ability to further support 10GE when realizing gigabit convergence or access. It supports IPv4/IPv6 hardware double stack and line speed forwarding, so that customers can easily cope with the coming IPv6 era, which provides high capacity exchange capacity. LBT88GST4-M-SFP switch has the operating temperature of -40℃ ~ 85℃, has the super firmness to adapt to all kinds of harsh environment, can also be very convenient to install in the machine room cabinet. The din-rail characteristics and wide temperature operation make the switch a plug and play industrial-grade device, providing a reliable and convenient solution for users to network their Ethernet devices.



Strong processing ability

LBT88GST4-M-SFP switch is based on the powerful and stable

processing power of VCore-III MIPS-based CPU

LBT88GST4-M-SFP provides up to 1.2Tbps of switching capacity

port full speed filtering and forwarding 406Mpps

To ensure that the trunk network of large traffic data without blocking

Forwarding.


Product features:

● Data control: Supports 802.3x full-duplex flow control and

network storm suppression

● Redundant network: supports STP, RSTP, MSTP and ERPS

● Redundancy backup: supports the virtual route redundancy protocol VRRP

● Multicast management: Support IGMP Snooping V1, V2, and V3

● VLAN: supports IEEE 802.1Q vlans to effectively isolate broadcast domains

Link aggregation: Support static/dynamic link aggregation, provide perfect bandwidth utilization

● QOS: Support COS\DSCP, 4 queues, support WRR\SP scheduling mode

● Security management: Security management: supports ACL and 802.1x

● Management: Supports WEB, CLI, and SNMP management

Monitoring and maintenance: Support port mirroring, interface status monitoring, log management


Specifications:

Model No.LBT88GST4-M-SFP
Interface

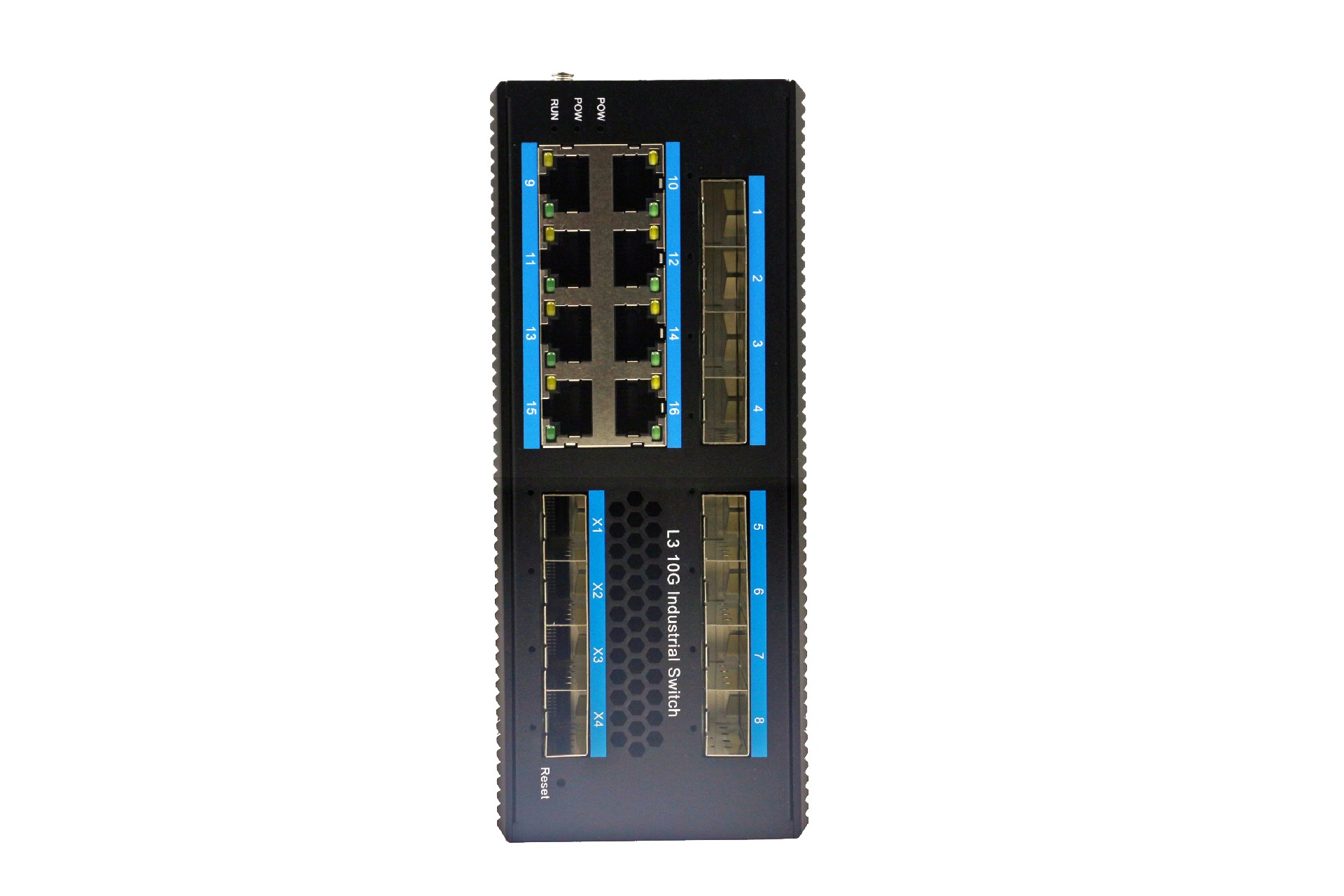

8-Port 10/100/1000Mbps RJ45

8-Port 1000Mbps SFP

4-Port 10G SFP+ (compatible with 1000M/2500M/10000M)

1-Port console


Performance Specification

Bandwidth(switch capacity): 1.2Tbps

Packet Buffer Memory:32Mbit

Packet Forwarding Rate: 406Mpps

MAC Address Table: 32K

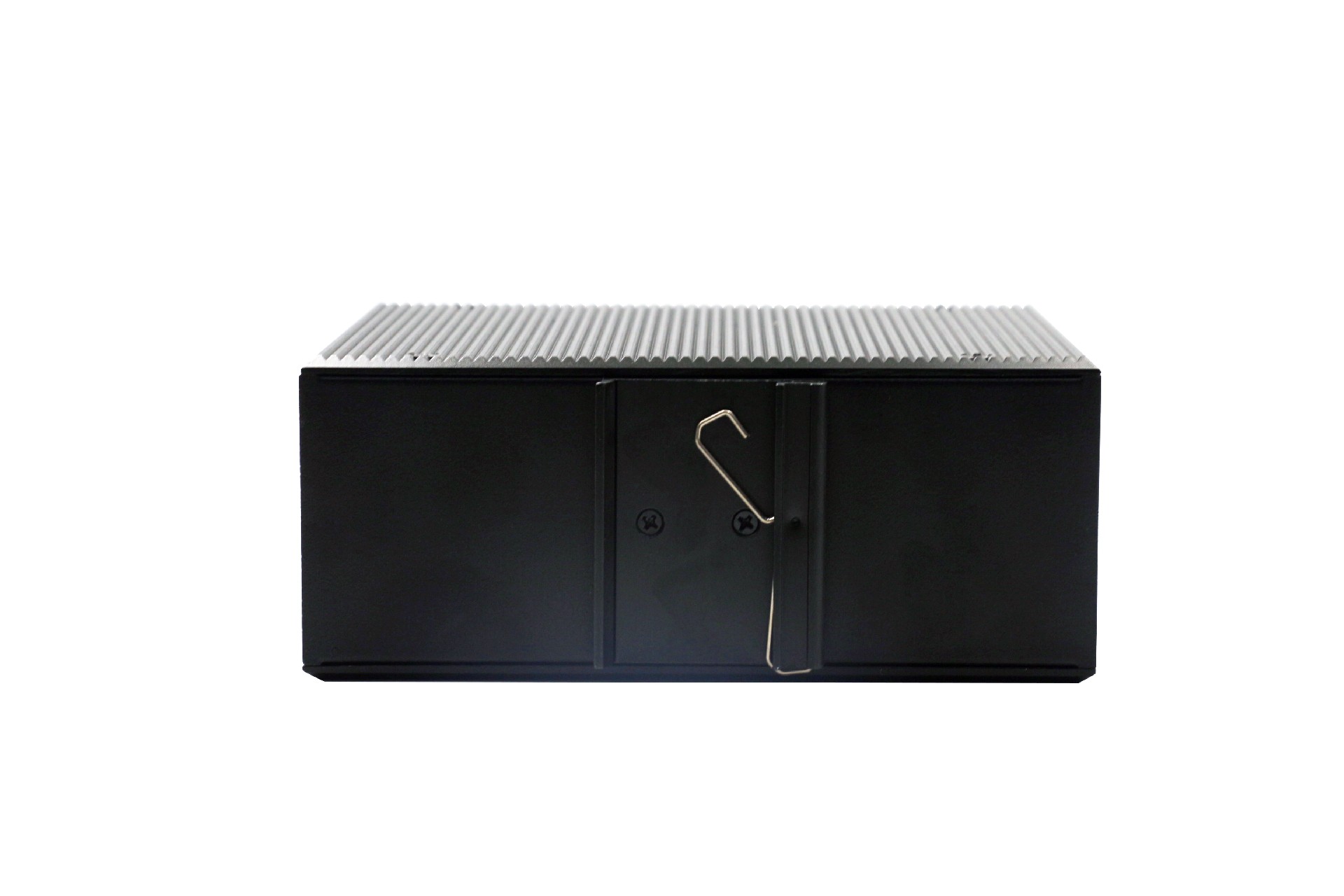

InstallationDin rail
Maximum Frame Size10240bytes
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing

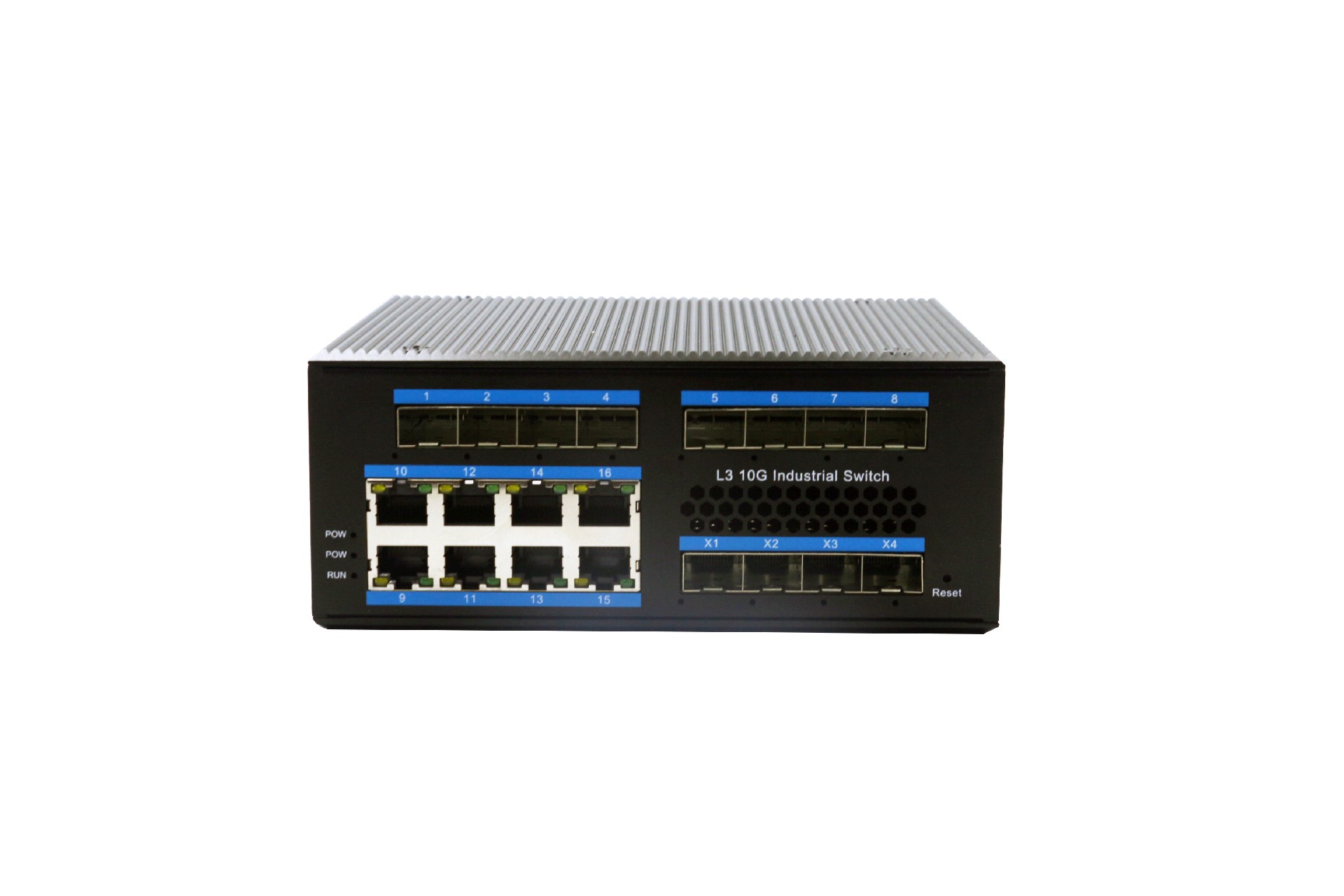

LED Indicator

POWER: Red

RUN: Green

Fiber: X1~X4(Green)

Ethernet: Green


Power InputDC 12V -52V redundant
Power Consumption< 24watts
Surge protection±4KV
Network Protocols

IEEE 802.3ad, link aggregation protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE 802.3ae,10G

IEEE 802.3x, Full duplex Ethernet data link Laminar flow control

IEEE 802.3az,EEE high efficient ethernet


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)


Industry Standard

(EMC 4)

FCC CFR47 Part 15,EN55032, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


MTBF300,000hours
Dimensions (W x D x H)166 x 137 x 68.5 mm
Weight

Product Weight: 1.2KGS

Packing Weight: 1.3KGS

Working Environment

Working temperature: -40~85℃ ;

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)


Management features:

Interface

IEEE802.3X (Full-duplex), Port temperature protection setting

Port green Ethernet Energy-saving setting Broadcast storm control based

on port speed. The speed limit of the message flow in the access port.

The minimum particle size is 64Kbps.

Layer 3 Features

L3 network management, IPV4/IPV6 management L3 soft routing forwarding,

Static route, Default route @ 128 pcs, APR@1024pcs

VLAN

4K VLAN based on port, IEEE802.1q

VLAN based on the protocol

VLAN based on MAC

VLAN based on IP

Voice VLAN, QinQ configuration

Port configuration of Access, Trunk, Hybrid

Port Aggregation

LACP, Static aggregation

Max 14 aggregation groups and 16 ports per group.

Spanning TreeSTP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring

Network Protocol

G.8032 (ERPS), Recovery time less than 20ms

250 Ring at most, Max 250 devices per ring. Multicast

Multicast

MLD Snooping v1/v2,Multicast VLAN Registration (MVR)

IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Port MirroringBidirectional data mirroring based on port
QoS

SP(Strict Priorty)

WFQ (Weighted Fair Queuing)

WRR (Weighted Round Robin)

Random Early Detect (RED)

WeightedRandomEarlyDetection (WRED)

Head Of Line

Best-Effort Service

First come first served

802.1p

Cos/Tos,QOS

Differentiated Service

ACL

Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source,

Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range,

and VLAN, etc.

Security

Support IP ACL,MAC ACL,Vlan ACL,support ACL based on L3 L4

IP+MAC Port binding

Support IP Source Guard, RP Detection

Support IEEE 802.1x port verification, support Radius

DHCPDHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
IP routing

Supports port-based input/output bandwidth management.

Supports static routes. IPV6

Supports the virtual route redundancy protocol VRRP.

Dynamic routes such as RIP, RIPng, OSPF, and OSPFv3 are supported.

System maintenance

Supports configuration file uploading and downloading. Upload the upgrade package.

Supports factory restore on WEB, Supports the system log function.

Support  Ping 、tracert、cable detection and other diagnostic functions.

Supports WEB management (HTTP and HTTPS).

Supports CLI management. Supports Telnet remote management.

Supports SSH 2.0. Supports SNMP network management.

Support RMON; Supports NTP clients. Support PTP(1588v2)
