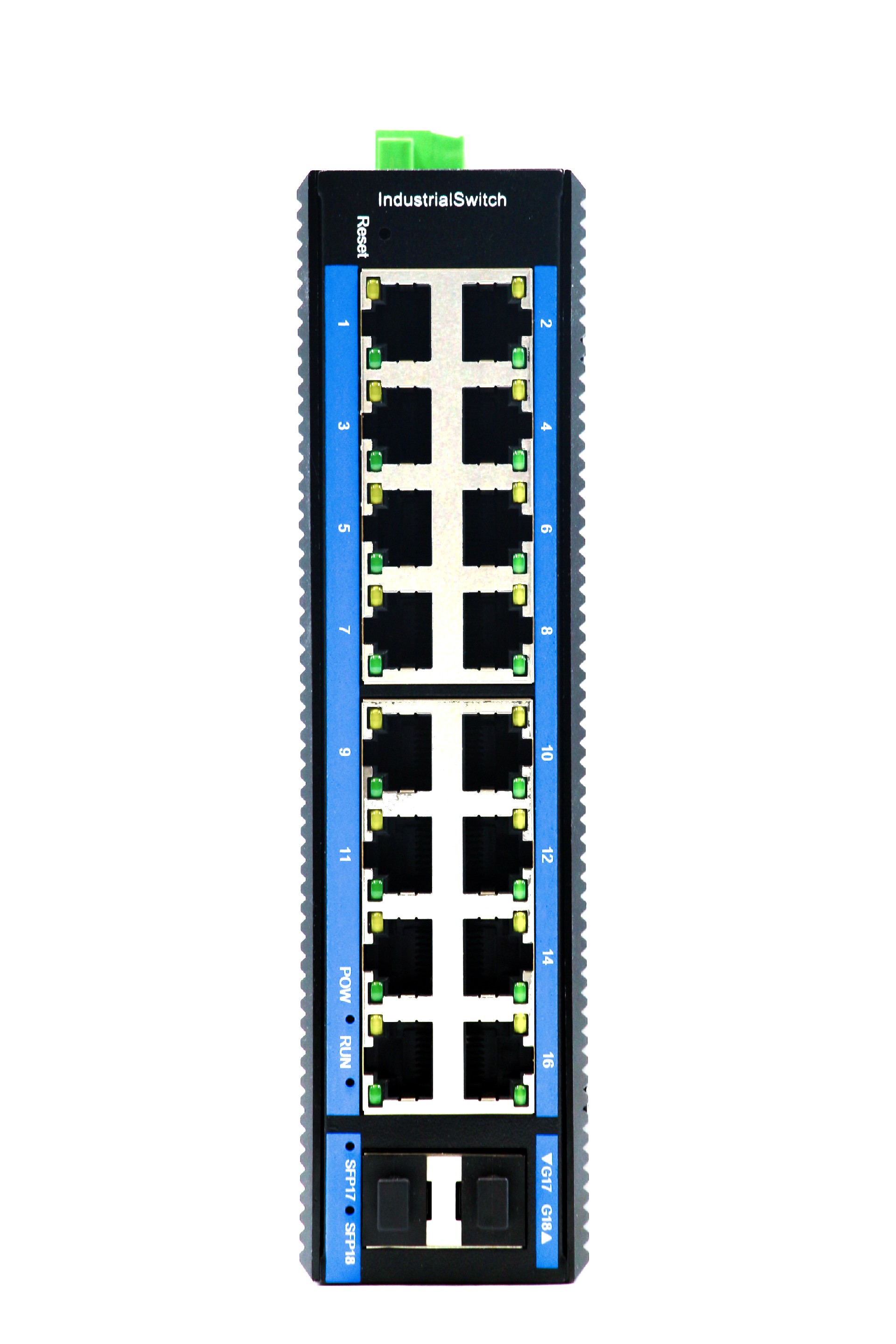

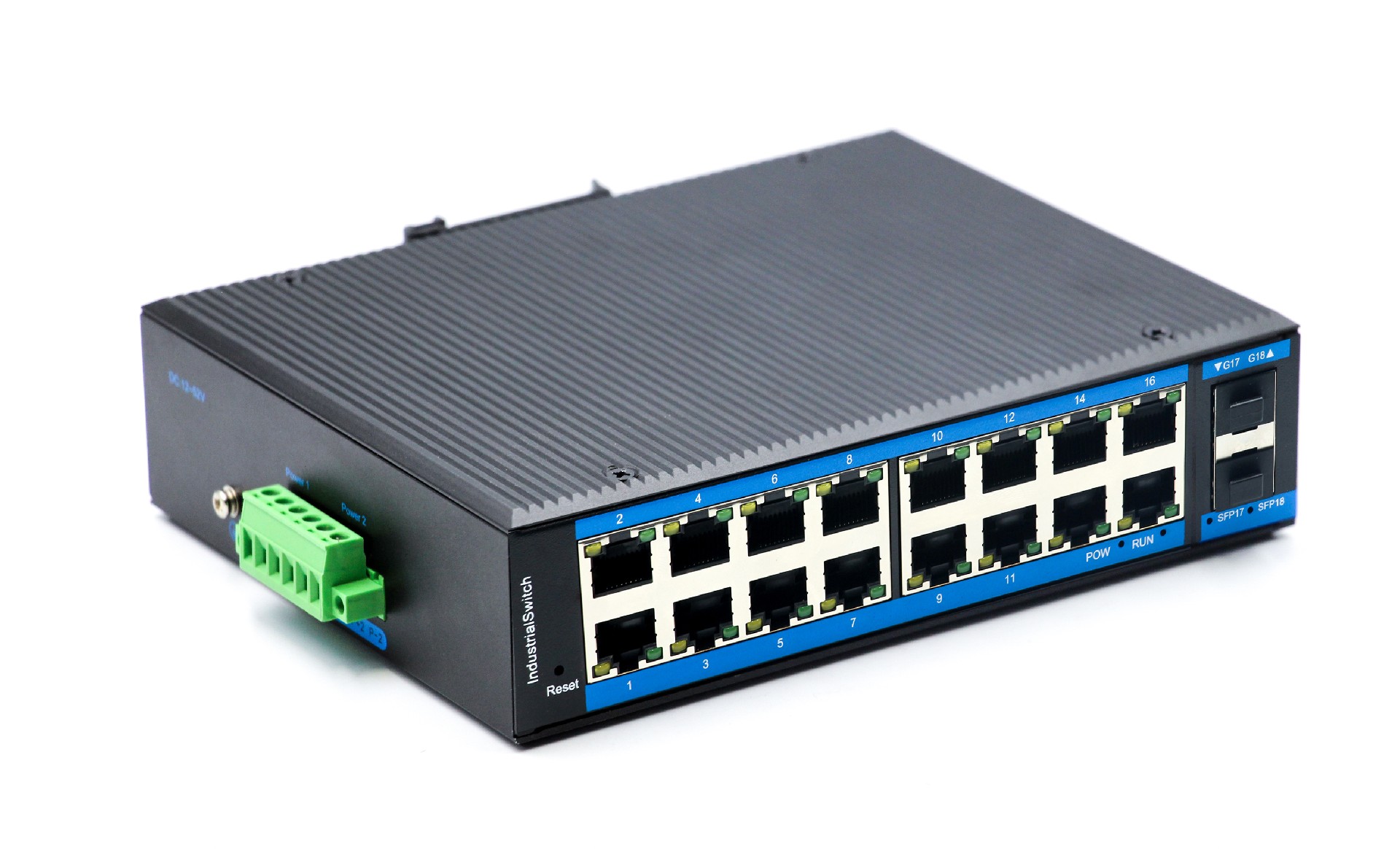

LBT216GS-M-SFP

16-port 10//100/1000BASE-TX+2G SFP Managed Industrial SwitchLBT216GS-M-SFP an hardened 18-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong

16-port 10//100/1000BASE-TX+2G SFP Managed Industrial Switch


LBT216GS-M-SFP an hardened 18-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The LBT216GS-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The LBT216GS-M-SFP is packaged in a compact IP40 case with DIN rail installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


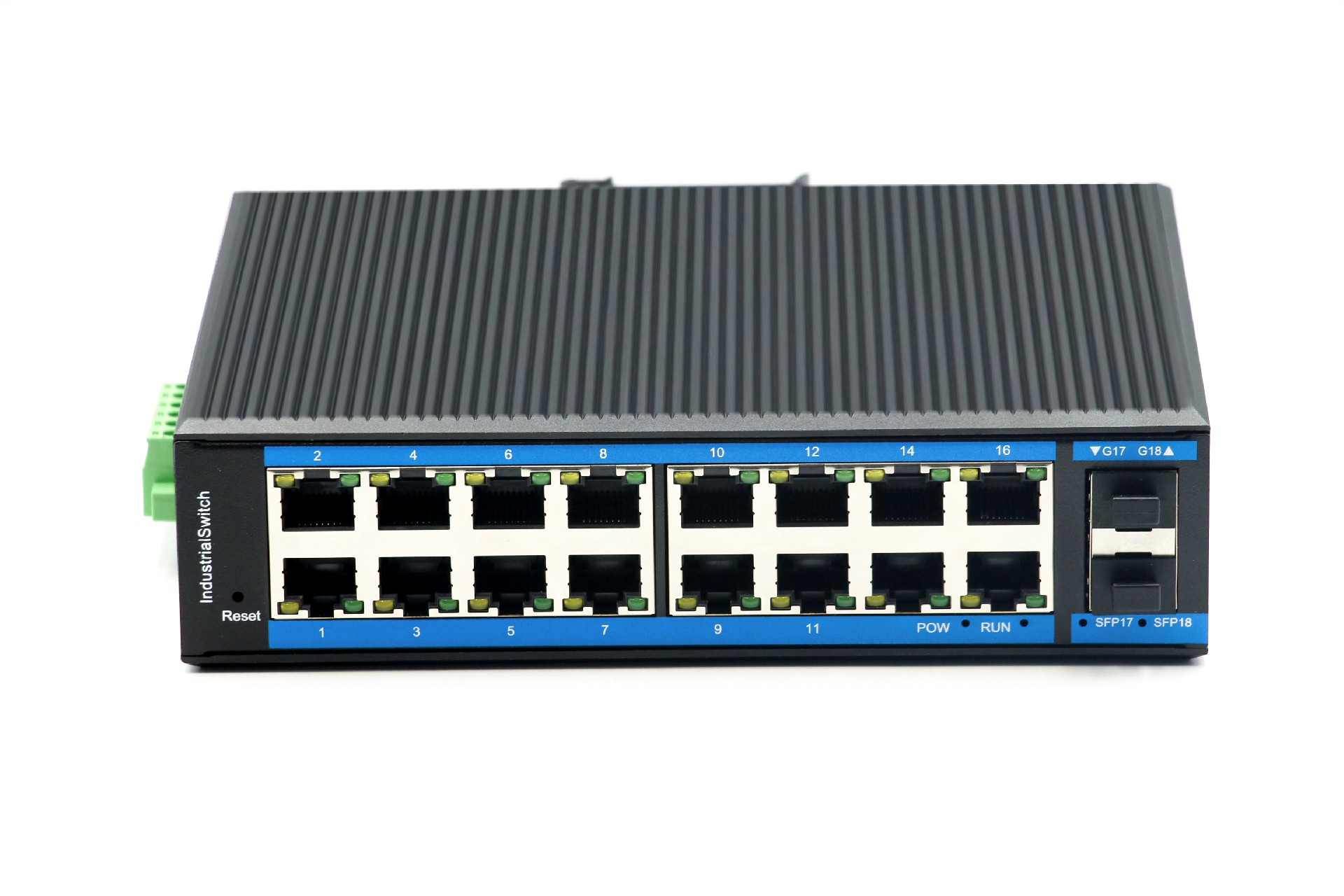

Interface

•16-port 10/100Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function

•2-port gigabit SFP uplink


Industrial conformance

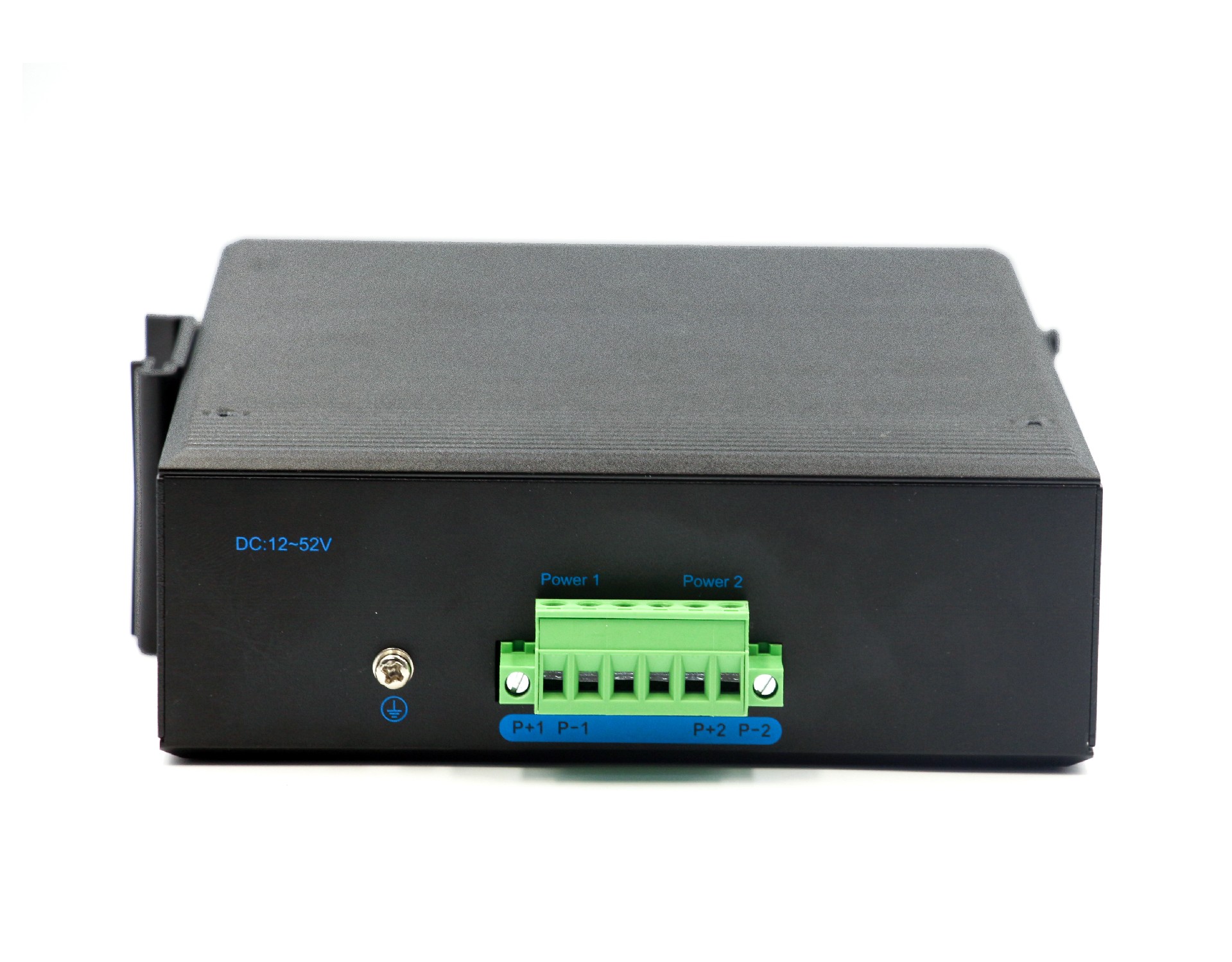

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

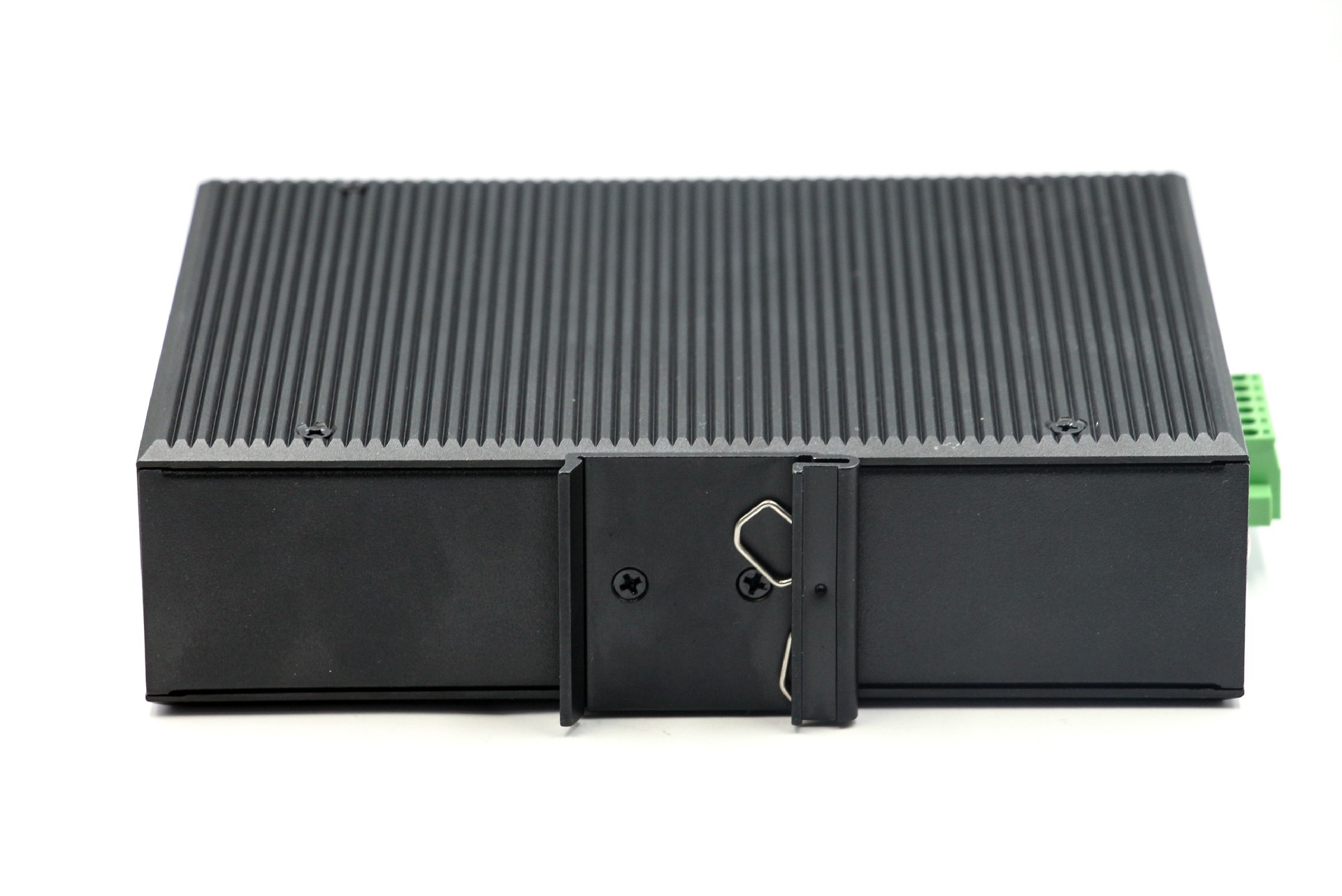

•DIN-rail and wall-mountable hardware design


Specifications:

Model No.LBT2 16GS-M-SFP
1000Base-TX Port16 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

2G SFP Slot


Performance Specification

Bandwidth: 56Gbps

Packet Buffer Memory: 12Mbit

Packet Forwarding Rate: 42Mpps

MAC Address Table: 8K


InstallationDIN rail
Maximum Frame Size10240bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow


Power Input12 to 52V DC redundant power
Power Consumption< 10 W
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


CertificationCE FCC Rohs compliance
MTBF>300,000hours
Dimensions (W x D x H)175.6 x 135 x 45.5 mm
Weight

Product Weight: 1.18KG

Packing Weight: 1.3KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty 1-year replacement with new item; 3-years for main parts.


Software:

Port FeaturesIEEE 802.3x Flow control
Interface counters
Storm Control
Link AggregationStatic Aggregation
Dynamic Aggregation, LACP

Supports up to 8 aggregation groups, each group up to 8 ports

Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy

MAC Table ManagementSupport
Forwarding modeSupport IVL forwarding mode
Static MAC AddressSupport
MAC Address BindingSupport
MAC Address FilteringSupport
MirrorPort-based Mirror
Spanning Tree

IEEE802.1d STP

IEEE802.1w RSTP
IEEE802.1s MSTP
ERPS (G.8032)Single Ring, Sub-Ring, Multi-Ring
Load balance
Recovery Time < 50ms
GVRPSupported
QINQ VLAN-based QinQ
LLDPLLDP
LLDP-MED
Loop Protection Supported
VLAN 4094 VLAN
Port-based VLAN
GVRP
Protocol VLAN MAC-based VLAN
IP Subnet-based VLAN
Voice VLANStatic entry
LLDP-MED
Port IsolateSupport
IGMP Snooping IGMP V1 Snooping
IGMP V2 Snooping
IGMP V3 Snooping
Source Port Check
IGMP Fast Leave
IGMP Filter
MLD Snooping MLD V1 Snooping
MLD V2 Snooping
Source Port Check
MLD Fast Leave
MLD Filter
Security
ACLACL (IP Standard ACL), IPv4/IPv6
MAC extend ACL
IP extend ACL
L2, L3, L4 fields match
log, redirection, mirroring, speed limit
QoSQoS Class, Remarking
SP, WRR queue scheduling
Ingress port-based rate-limit
Ingress priority-based rate-limit
Egress port-based rate-limit
Egress queue-based rate-limit
Policy-based QoS
Storm Control
8 queues per port
Dot1xPort Access Control
User Access Control
MAC-address Access Control
AAASupport 802.1x
Support RADIUS
Supports authentication, authorization, and accounting through RADIUS server
Management
User managementPassword protection
SNMPSNMP V1/V2c/V3
RMONStatistics Group
History Group
Alarm Group
Events Group
Web managementHTTP V1.1, HTTPS
Firmware UpgradeReversion Upgrade
IPv4/IPv6 Support
CLI Support
Syslog/DebugSupport
Diagnosis Ping (IPv4), ping (IPv6)
Trace route(IPv4)
Trace route(IPv6)
Management
NTP NTP Client
DHCPDHCPv4 Client, DHCPv6 Client
DHCP SnoopingDHCP snooping table
Trust Port
IPv6 DHCP-GuardSupport
Telnet Telnet Server
TFTP TFTP Client
SSH SSH Server


Dimensions


Ordering Information

LBT216GS-M-SFP16-port 10/100/100BASE-TX+2G SFP Managed Industrial Switch
