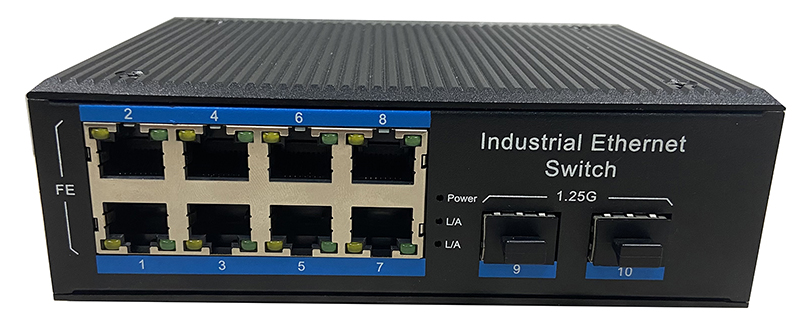

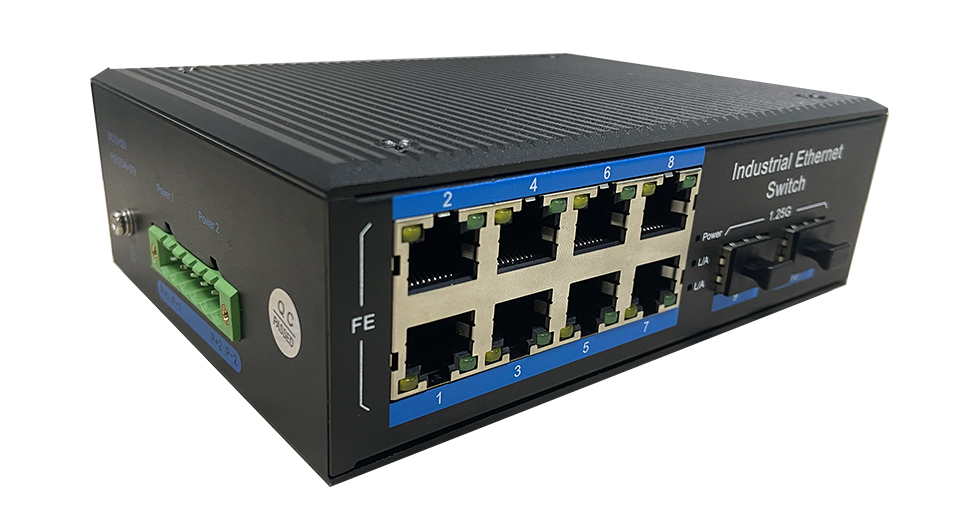

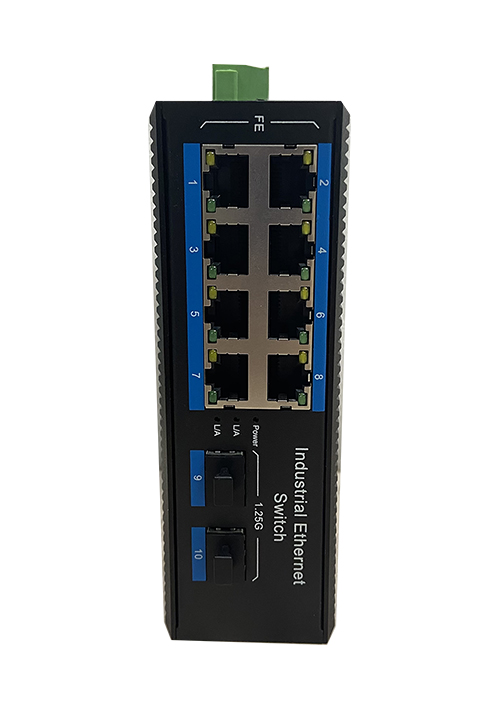

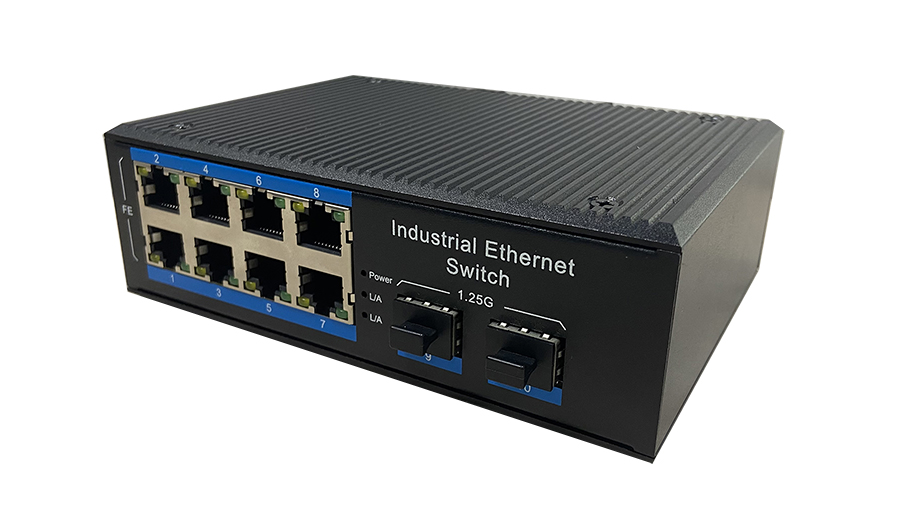

LBT28GF-SFP

8-Port 10/100Base-TX +2-Port 1000Base-FX Industrial Ethernet SwitchLBT28GF-SFP is an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100BASE-TX RJ45 +2-port 1000Base-Fx delivered in an IP40 ru

8-Port 10/100Base-TX +2-Port 1000Base-FX Industrial Ethernet Switch


LBT28GF-SFP is an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100BASE-TX RJ45 +2-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The LBT28GF-SFP is packaged in a compact IP40 case with Din Rail Installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Interface

•8-port 10/100Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

•2-port 1000Mbps SFP uplink


 Industrial conformance

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•DIN-rail hardware design


Specifications:

Model No.LBT28GF-SFP
10/100Base-TX Port8 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

2 SFP Slot

Performance Specification

Bandwidth: 20Gbps

Packet Buffer Memory:1.2Mbit

Packet Forwarding Rate:1.5Mpps

MAC Address Table: 2K

InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Copper / Fiber: Link / Act

Ethernet: Yellow

Power Input12 to 52V DC redundant power
Power Consumption< 8 watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


CertificationCE FCC Rohs compliance
MTBF>300,000hours
Dimensions (W x D x H)143.7 x 103.8 x 47.7 mm
Weight

Product Weight: 0.56KG

Packing Weight: 0.66KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty1-year replacement with new item; 3-years for main parts.

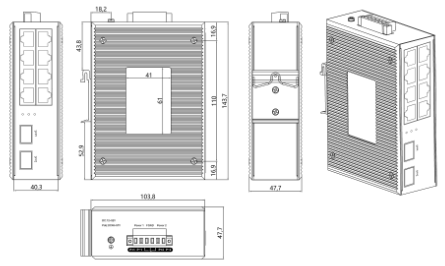

Dimensions



Ordering Information

LBT28GF-SFP8-port 10/100BASE-TX+2-port 1000Mbps SFP Industrial Ethernet Switch
