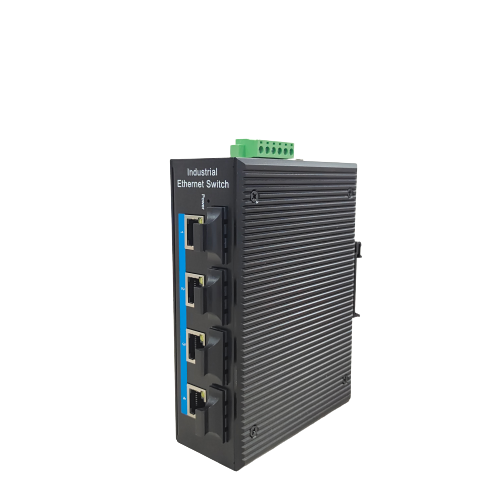

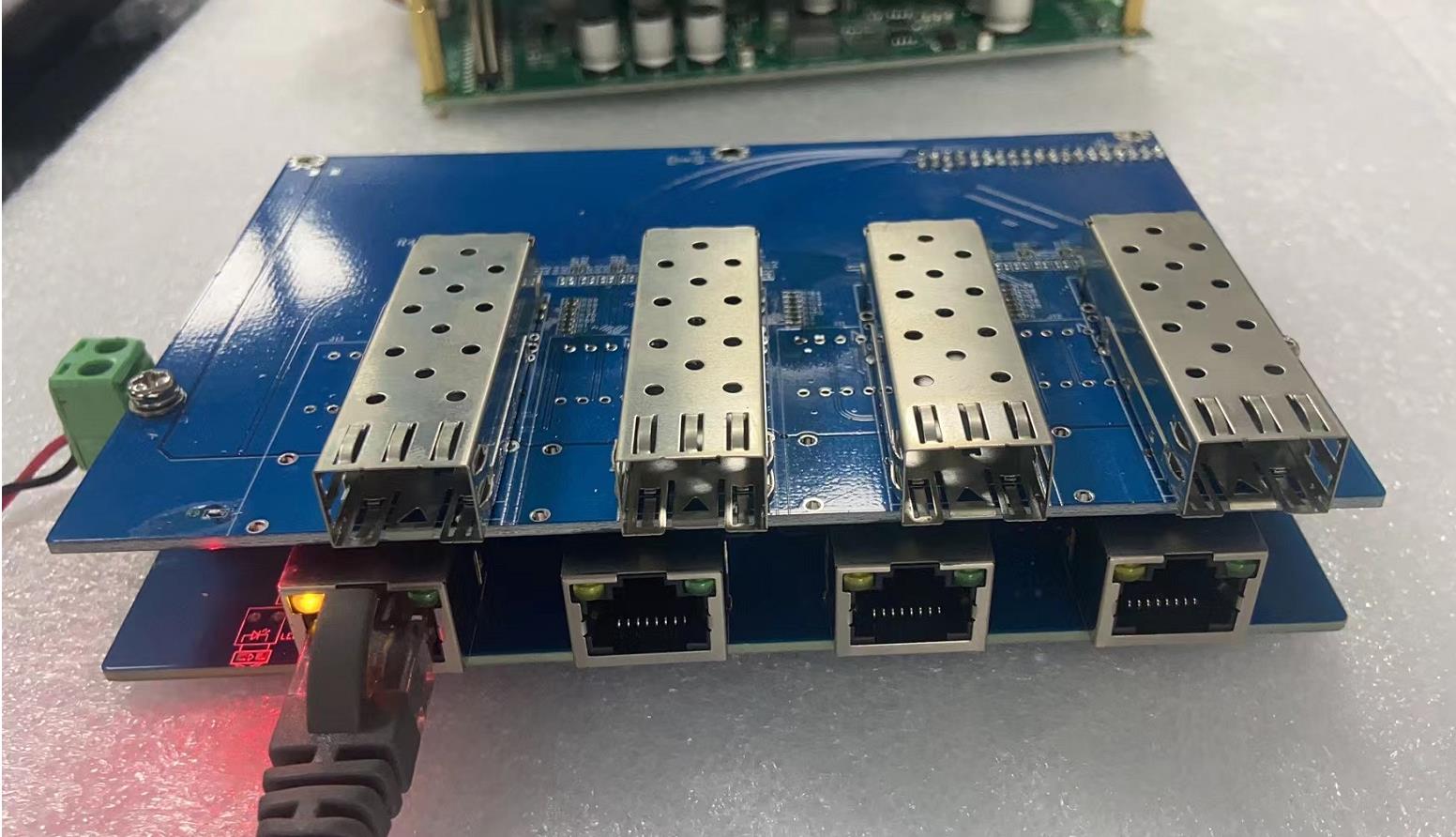

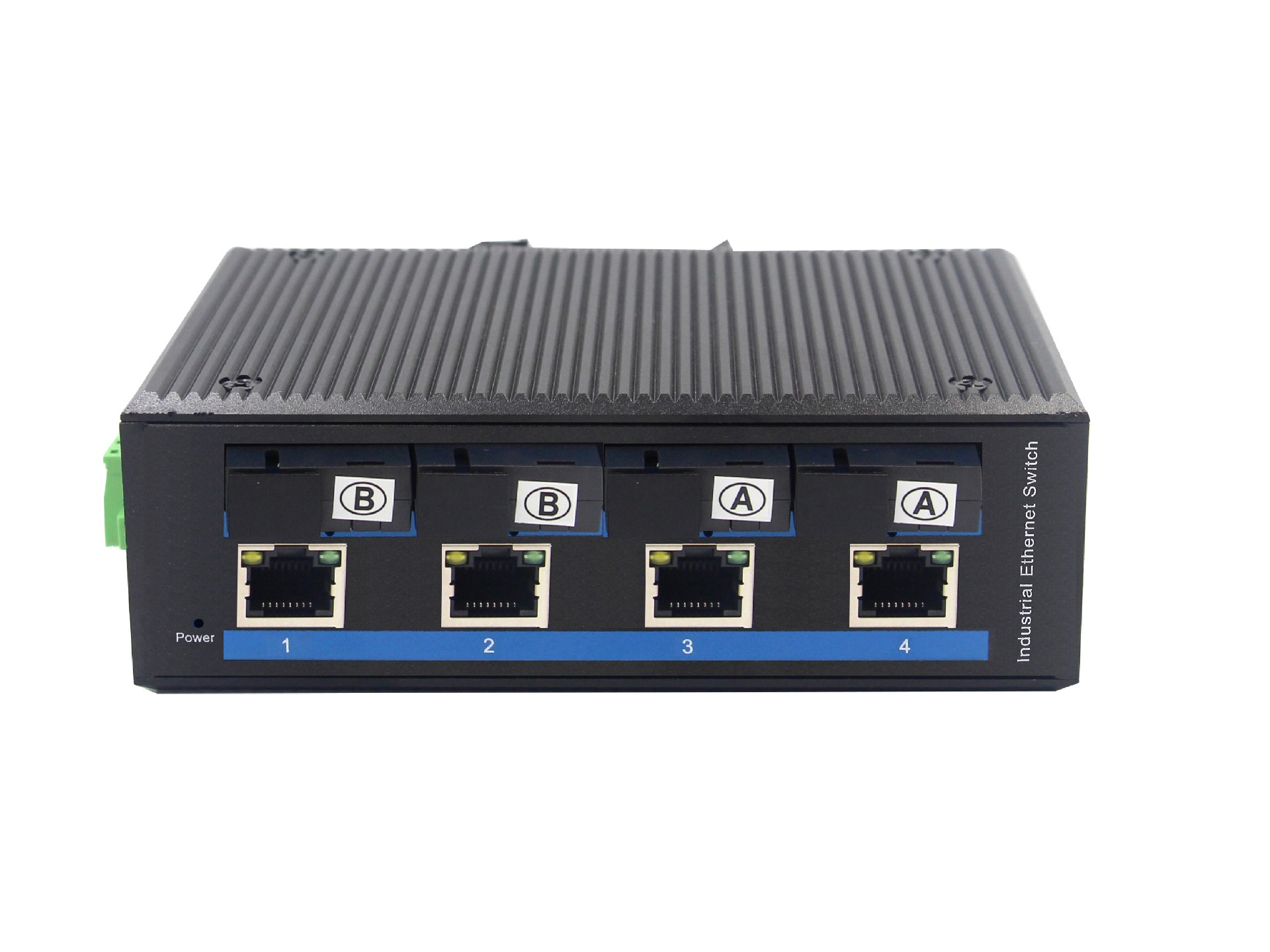

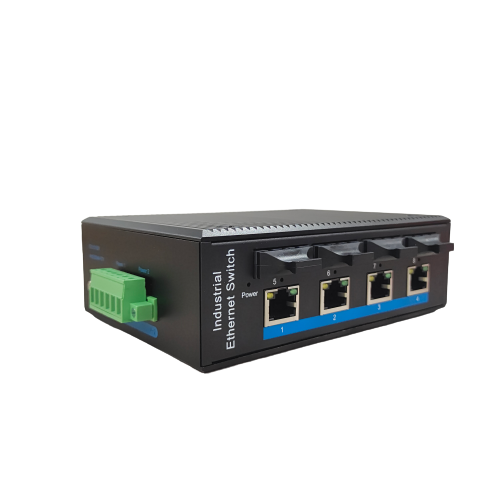

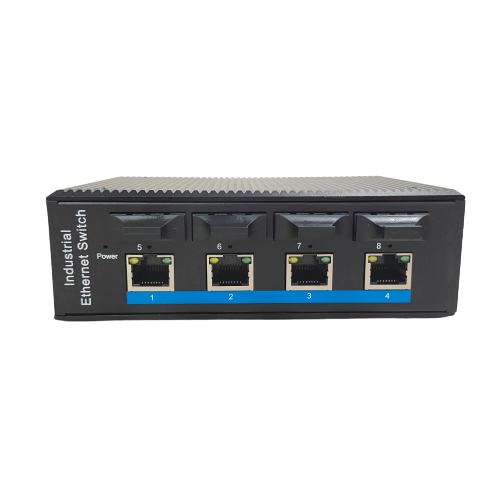

4-Port 10/100Base-TX +4-Port 100Base-FX Industrial Ethernet Switch

Yuhang 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the LBT44F-SC2, up to 20km with the RD44F-SC20 .

The LBT44F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 80℃ allows the LBT44F series to be placed in almost any difficult environment.

Yuhang LBT44F series 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The LBT44F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ45 port and performs highly stable fiber performance.

The LBT44F series is packaged in a compact IP40 case ,with DIN rail installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface

•4-port 10/100Base-Tx RJ45 with auto negotiation and auto-MDI/ MDI-X function

•4-port 100Base-Fx interface SC/FC/ST/SFP

•Multi-Mode up to 2km

•Single-Mode up to 20km/40km/60km/80km

Industrial conformance

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•DIN-rail hardware design

Specifications:

Model No.	LBT44F-SC2 / LBT44F-SC20 / LBT44F-SFP
10/100Base-TX Port	4 port RJ-45 auto-MDI / MDI-X
100Base-FX Port	LBT44F-SC2: 4 SC interface LBT44F-SC20: 4 SC Interface LBT44F-SFP: 4 SFP Slot
Fiber Port Type	LBT44F-SC2: SC / multi-mode ,up to distance 2km ; LBT44F-SC20: SC / single-mode ,up to distance 20km ; LBT44F-SFP: Vary on module
Optical Frequency	LBT44F-SC2: 1310nm LBT44F-SC20: 1310nm LBT44F-SFP: Vary on module
Performance Specification	Bandwidth: 1.6Gbps Packet Buffer Memory:1Mbit Packet Forwarding Rate:1.2Mpps MAC Address Table: 2K
Installation	DIN rail
Maximum Frame Size	9000bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP40 aluminum housing
LED Indicator	Power: Red Fiber: Link 2(Green) Ethernet: Yellow
Power Input	12 to 52V DC redundant power
Power Consumption	< 8 watts
Surge protection	±4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	143.7 x 103.8 x 47.7 mm
Weight	Product Weight: 0.7KG Packing Weight: 0.8KG
Working Environment	Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation)
Warranty	1-year replacement with new item; 3-years for main parts.

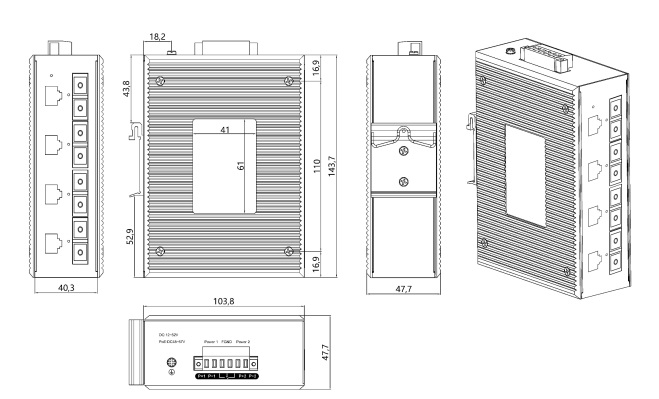

Dimensions


4-Port 10/100Base-TX +4-Port 100Base-FX Industrial Ethernet Switch

Yuhang 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the LBT44F-SC2, up to 20km with the RD44F-SC20 .

The LBT44F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 80℃ allows the LBT44F series to be placed in almost any difficult environment.

Yuhang LBT44F series 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The LBT44F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ45 port and performs highly stable fiber performance.

The LBT44F series is packaged in a compact IP40 case ,with DIN rail installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface

•4-port 10/100Base-Tx RJ45 with auto negotiation and auto-MDI/ MDI-X function

•4-port 100Base-Fx interface SC/FC/ST/SFP

•Multi-Mode up to 2km

•Single-Mode up to 20km/40km/60km/80km

Industrial conformance

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•DIN-rail hardware design

Specifications:

Model No.	LBT44F-SC2 / LBT44F-SC20 / LBT44F-SFP
10/100Base-TX Port	4 port RJ-45 auto-MDI / MDI-X
100Base-FX Port	LBT44F-SC2: 4 SC interface LBT44F-SC20: 4 SC Interface LBT44F-SFP: 4 SFP Slot
Fiber Port Type	LBT44F-SC2: SC / multi-mode ,up to distance 2km ; LBT44F-SC20: SC / single-mode ,up to distance 20km ; LBT44F-SFP: Vary on module
Optical Frequency	LBT44F-SC2: 1310nm LBT44F-SC20: 1310nm LBT44F-SFP: Vary on module
Performance Specification	Bandwidth: 1.6Gbps Packet Buffer Memory:1Mbit Packet Forwarding Rate:1.2Mpps MAC Address Table: 2K
Installation	DIN rail
Maximum Frame Size	9000bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP40 aluminum housing
LED Indicator	Power: Red Fiber: Link 2(Green) Ethernet: Yellow
Power Input	12 to 52V DC redundant power
Power Consumption	< 8 watts
Surge protection	±4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	143.7 x 103.8 x 47.7 mm
Weight	Product Weight: 0.7KG Packing Weight: 0.8KG
Working Environment	Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation)
Warranty	1-year replacement with new item; 3-years for main parts.

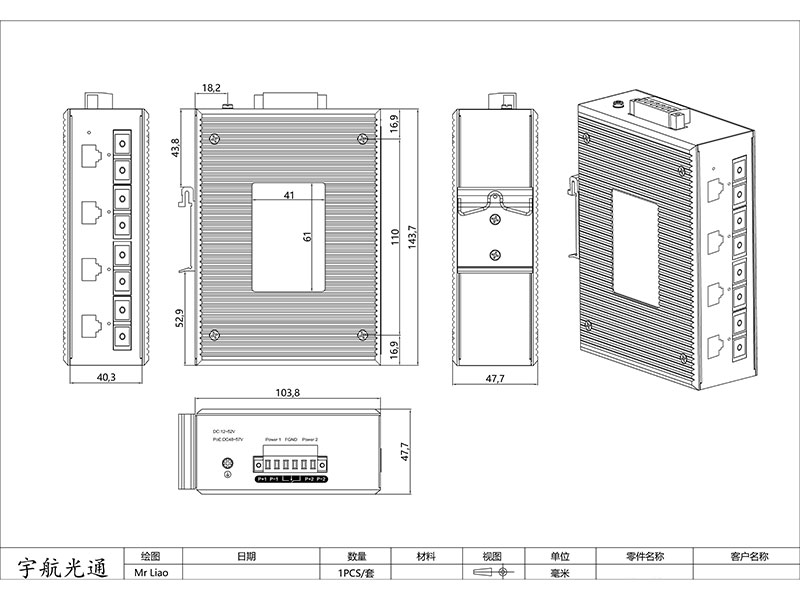

Dimensions
